Hebei Hongcheng Pipe Fittings Co., Ltd.

Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5

Product Details:
Place of Origin: Yanshan, Hebei, China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 120 "
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Brand Name:: HongCheng Download: Depending On Quantity
Payment Terms:: T/T, L/C, Western Union OD: 15mm-6000mm
Pressure :: Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K Standard :: ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc.
Type :: Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding Application:: Petroleum, Chemical, Machinery, Electric Power, Shipbuilding,
High Light:

Ansi High Pressure Pipe Flanges Din2000

,

Din2000 High Pressure Pipe Flanges

,

Stainless ansi b16 5 flanges

Product Description

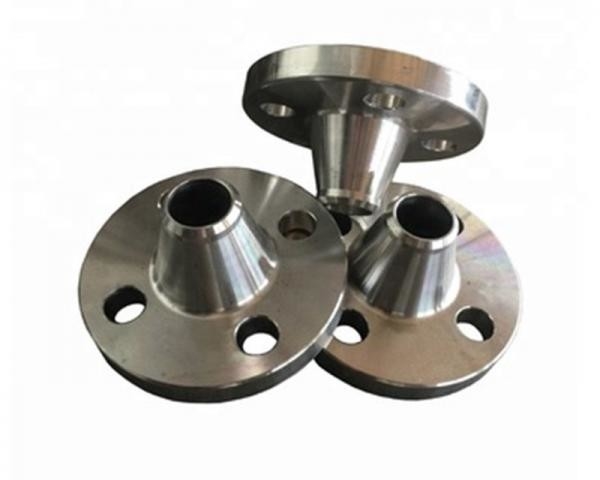

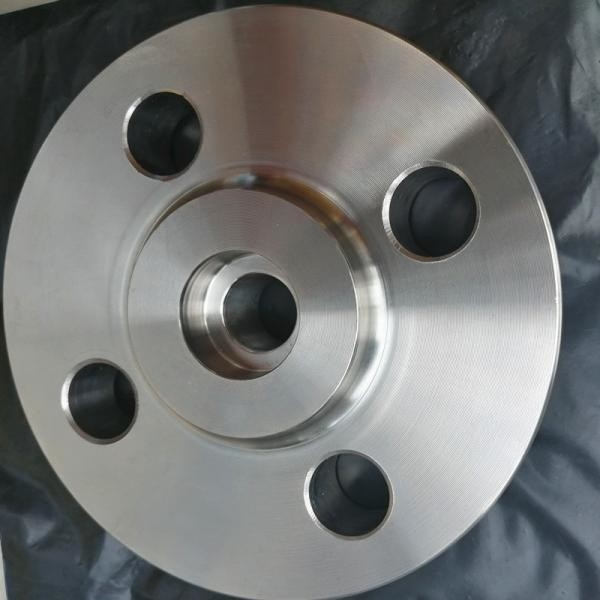

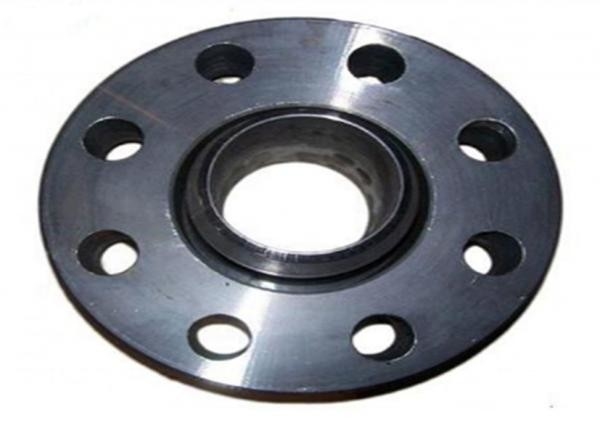

High Pressure Pipe Flanges Asme/Ansi B16.5 Dn15-Din2000 Stainless Steel Alloy Steel Pipe Fittings Flanges

High pressure flange is used for connecting pipes or equipment with pressure higher than 10MPa. At present, it mainly includes traditional high-pressure flange and high-pressure self tightening flange.

High pressure flange is a part that uses the plastic deformation of the sealing gasket (elliptical gasket, octagonal gasket, lens gasket, etc.) to achieve the sealing effect, and is connected to the pipe end to connect the pipe with the pipe. There are holes on the flange, and the two flanges are tightly connected by stud bolts.

Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5 0

Technical data sheet

Carbon Steel Pipe Fittings ASTM A234 carbon steel tee technical data sheet as below:



DN

PM1.6MPa(16bar)

PN2.5MPa(25bar)

external diameter

Diameter of bolt hole center circle

Bolt hole diameter

Bolt thread

quantity

external diameter

Diameter of bolt hole center circle

Bolt hole diameter

Bolt thread

quantity

10

90

60

14

M12

4

90

60

14

M12

4

15

95

65

14

M12

4

95

65

14

M12

4

20

105

75

14

M12

4

105

75

14

M12

4

25

115

85

14

M12

4

115

85

14

M12

4

32

140

100

18

M16

4

140

100

18

M16

4

40

150

110

18

M16

4

150

110

18

M16

4

50

165

125

18

M16

4

165

125

18

M16

4

65

185

145

18

M16

4

185

145

18

M16

8

80

200

160

18

M16

4

200

160

18

M16

8

100

220

180

18

M16

4

235

190

22

M20

8

125

250

210

18

M16

8

270

220

26

M24

8

150

285

240

22

M20

8

300

250

26

M24

8

200

340

295

22

M20

8

360

310

26

M24

12

250

405

344

26

M24

12

425

370

30

M27

12

300

460

410

26

M24

12

485

430

30

M27

16

Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5 1

Characteristic

1. The sealing principle belongs to plastic deformation.

2. Connected by bolts.

3. Bolts should bear tensile force, temperature difference stress, bending moment, torque and many other external stresses.

4. The volume is huge, the weight is heavy, and the installation and positioning is very difficult.

5. The sealing performance is unstable, especially under harsh conditions (high temperature, high pressure and highly toxic medium), it is easy to leak, resulting in serious consequences.

Standard

ANSI

ANSI B16.5 ASME B16.47 series A/B

DIN

DIN

EN

EN1092-l:2002

Material

ANSI

CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80

DIN

CS RST37.2;S235JR SS 304/304L.316/316L

EN

CS RST37.2;S235JR;C22.8SS 304/304L,316/316L

Pressure

ANSI

Class 150, 300, 600, 900, 1500 2500lbs

DIN

PN6,PN10,PN16>PN25,PN40>PN64,PN100

EN

PN6,PN10,PN16>PN25,PN40>PN64,PN100

Size

ANSI

1/2" - 60”

DIN

DN15-DN2000

EN

DN15-DN2000

Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5 2

Package

Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5 3Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5 4

Stainless Steel High Pressure Pipe Flanges Din2000 Ansi B16.5 5
