Hebei Hongcheng Pipe Fittings Co., Ltd.

Alloy Steel High Pressure Pipe Flanges Mss Sp44 Ansi B16.36 Ansi B16.48

Product Details:
Place of Origin: Yanshan, Hebei, China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 120 "
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Download: Depending On Quantity Payment Terms:: T/T, L/C, Western Union
Size :: 1/2" - 120" Pressure :: Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K
Standard :: ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc. Packaging Details :: Wooden Box, Pallet Or According To Customer Requirements
High Light:

Ansi B16.36 High Pressure Pipe Flanges

,

Mss Sp44 High Pressure Pipe Flanges

,

Ansi B16.48 Alloy Steel Flanges

Product Description

High Pressure Pipe Flanges Sw Alloy Steel Flange Ansi B16.5, Ansi B16.47, Mss Sp44, Ansi B16.36, Ansi B16.48

China Hebei Hongcheng Pipe Industry Co., Ltd. ( HongCheng) has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 10000 tons. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. HongCheng has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.

HongCheng was licensed with independent export entitlement in 2001 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.

Porduct Name

weld neck flange, slip on flange, blind flange, tube sheet, threaded flange,

socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange.

(En1092-1 PN10 Pn16 DN900 DN750 Plate Steel Stainless Steel Flange)

OD

15mm-6000mm

Pressure

150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000

Standard

ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.

Wall thickness

SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,

SCH80, SCH160, XXS and etc.

Material

Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S,

A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541,

254Mo and etc.

Carbon steel: A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,

UNS32760, 1.4462,1.4410,1.4501 and etc.

Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,

C22, C-276, Monel400, Alloy20 etc.

Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.

Application

Petrochemical industy;avation and aerospace industry;pharmaceutical industry;

gas exhaust;power plant;ship buliding;water treament,etc.

Advantages

ready stock,faster delivery time;available in all sizes,customized;high quality

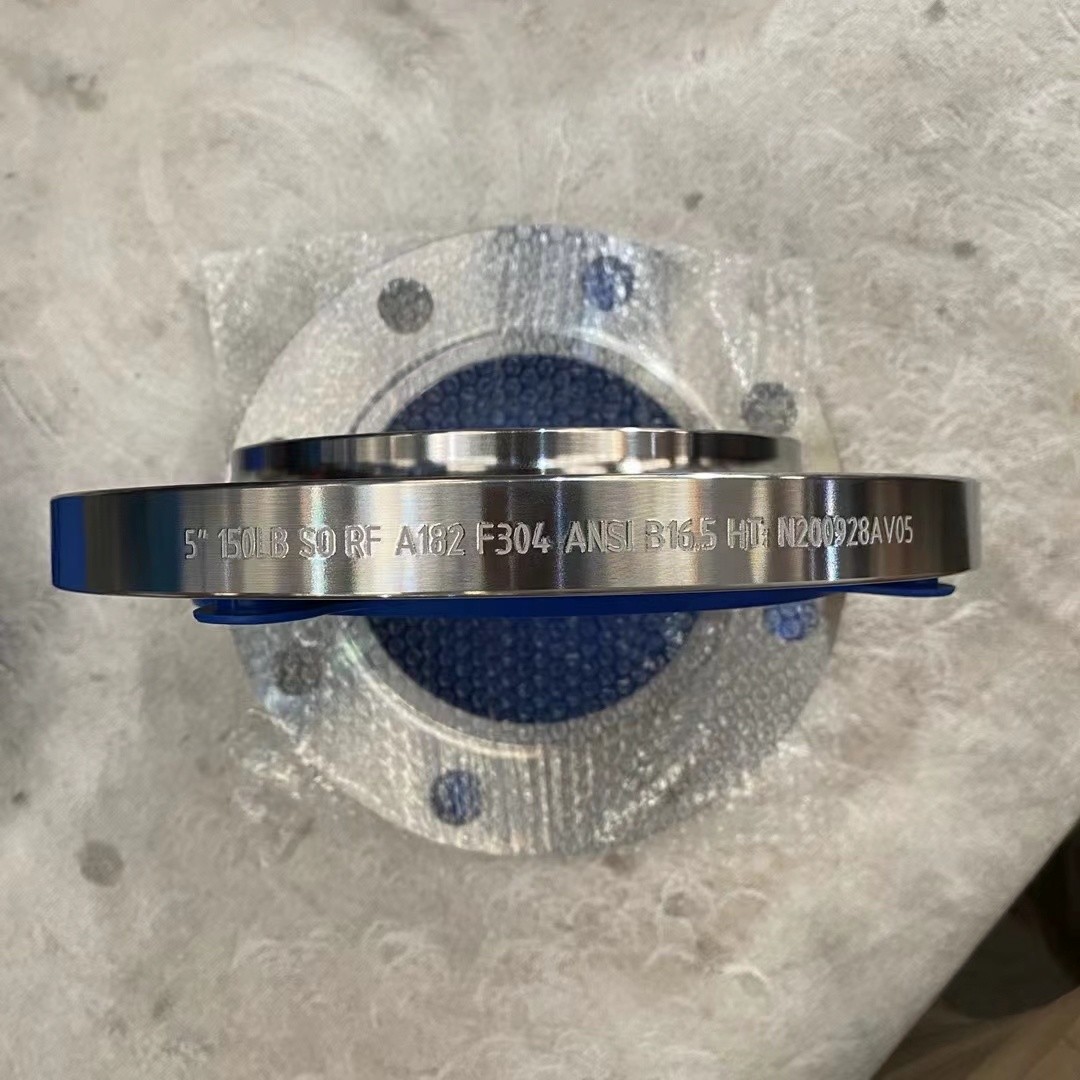

Alloy Steel High Pressure Pipe Flanges Mss Sp44 Ansi B16.36 Ansi B16.48 0

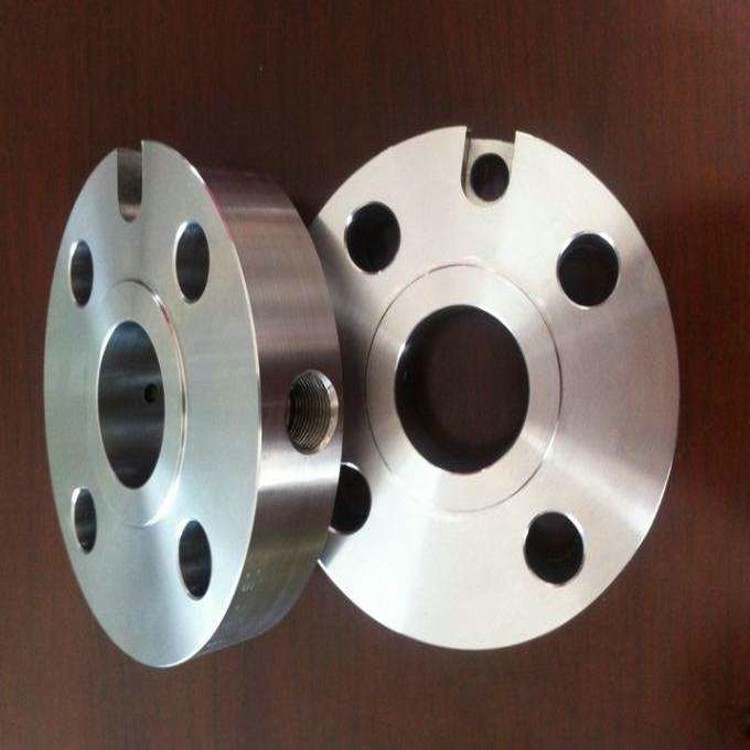

Alloy Steel High Pressure Pipe Flanges Mss Sp44 Ansi B16.36 Ansi B16.48 1

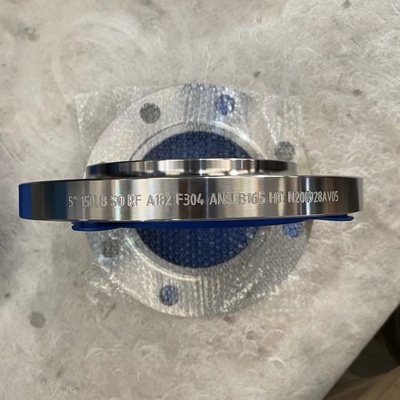

Alloy Steel High Pressure Pipe Flanges Mss Sp44 Ansi B16.36 Ansi B16.48 2

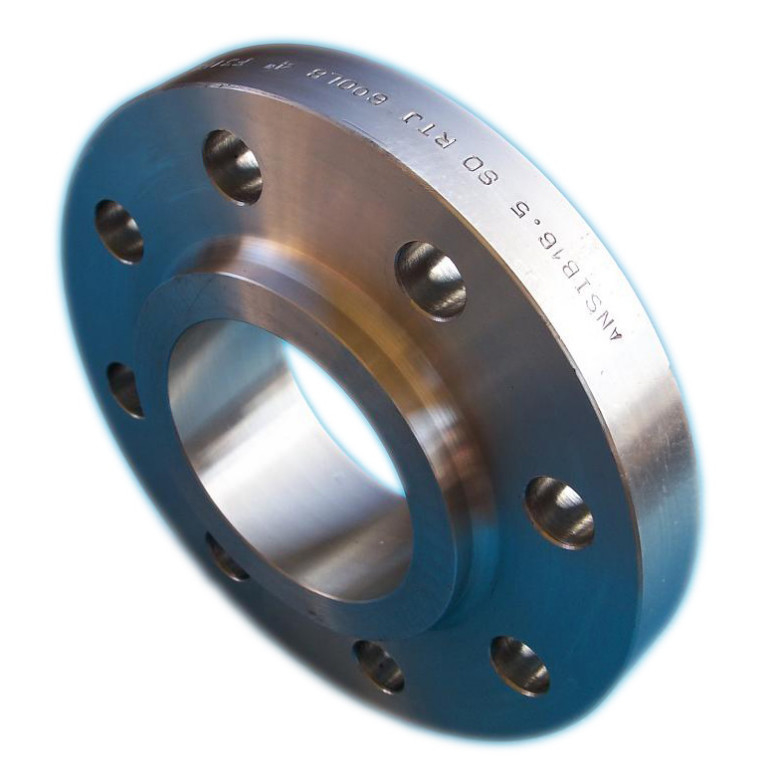

Alloy Steel High Pressure Pipe Flanges Mss Sp44 Ansi B16.36 Ansi B16.48 3



Alloy Steel High Pressure Pipe Flanges Mss Sp44 Ansi B16.36 Ansi B16.48 4
