Hebei Hongcheng Pipe Fittings Co., Ltd.

Rf 2 Inch Ansi Steel Welding Neck Flange High Pressure Class 150 OEM ODM

Product Details:
Place of Origin: Yanshan, Hebei, China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 120 "
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Download: Depending On Quantity Payment Terms:: T/T, L/C, Western Union
OD: 15mm-6000mm Pressure :: Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K
Standard :: ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc. Type :: Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding
Packaging Details :: Wooden Box, Pallet Or According To Customer Requirements Application:: Petroleum, Chemical, Machinery, Electric Power, Shipbuilding,
High Light:

ODM Ansi Steel Welding Neck Flange

,

OEM Ansi Steel Welding Neck Flange

,

2 Inch welding neck flanges

Product Description

High Pressure Pipe Flanges Rf 2" Std Cl150 B16.5 825 Wn Alloy Steel Welding Neck Flanges​

Specifications
1. Hastelloy Pipe SW Flange
2. Size: 1/2’’—60’’
3. ISO9001,ISO9000
4. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore,
Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform

Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.
We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.

Pipe Flanges Specifications
Specifications Alloy825
Size 1/2″NB TO 60″NB
Standards ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.



Product Name Nickel Alloy Pipe Flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type Special Flange: According to the drawing Picture
Materials Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30
Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L, UNS S32750, UNS S32760
Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55, UNS S31803, UNS S31254
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC  SSC test, etc. or as your requirement
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages 1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.)

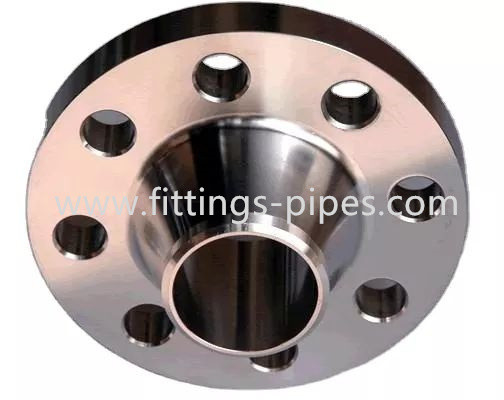

Rf 2 Inch Ansi Steel Welding Neck Flange High Pressure Class 150 OEM ODM 0

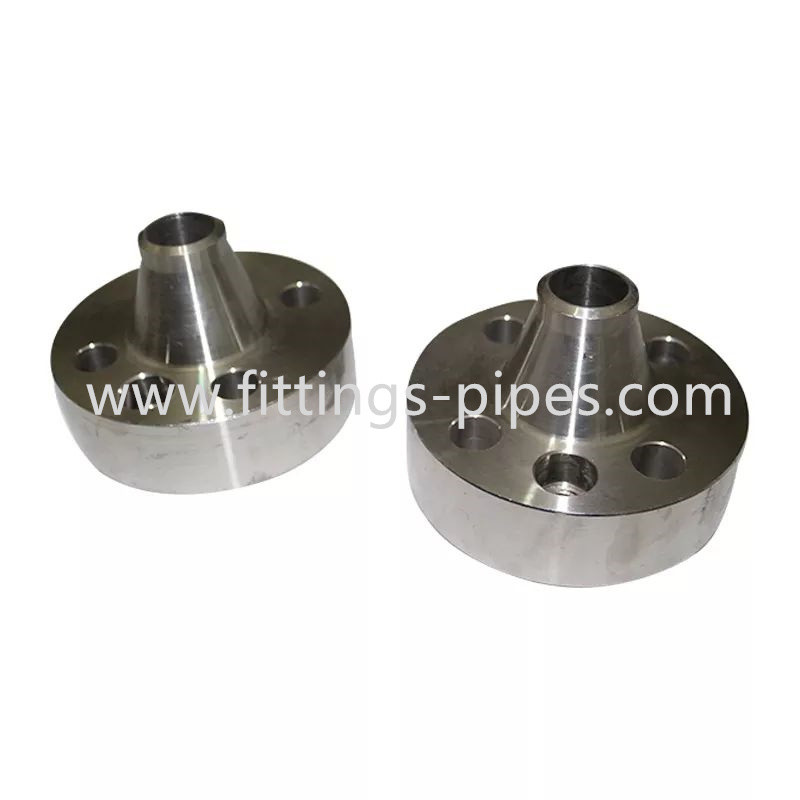

Rf 2 Inch Ansi Steel Welding Neck Flange High Pressure Class 150 OEM ODM 1
Nickel Alloy Flanges Application Industries

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry


Nickel Pipe Flanges Test Certificates
We at GIC provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate,
100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1
and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc

Packaging  Shipping

Packaging: In wooded cases , pallets or according to clients' requirements
Shipping: Tianjin port, Shanghai port and the other main ports in China



Rf 2 Inch Ansi Steel Welding Neck Flange High Pressure Class 150 OEM ODM 2

Rf 2 Inch Ansi Steel Welding Neck Flange High Pressure Class 150 OEM ODM 3

Rf 2 Inch Ansi Steel Welding Neck Flange High Pressure Class 150 OEM ODM 4
