Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM
Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM
Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM

Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM

Product Details:
Place of Origin: Yanshan, Hebei, China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 120 "
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Brand Name:: HongCheng Download: Depending On Quantity
Payment Terms:: T/T, L/C, Western Union Size :: 1/2" - 120"
Pressure :: Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K Standard :: ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc.
High Light:

Din2633 High Pressure Pipe Flanges

,

Pn16 High Pressure Pipe Flanges

,

OEM Forged Flanges And Fittings

Product Description

High Pressure Pipe Flanges Wn Forged Flange Din En1092-1 Type11 Din2633 Pn16 Din2632 P245gh Alloy Pipe Flange

China Hebei Hongcheng Pipe Industry Co., Ltd. ( HongCheng) has become one of the biggest flange and pipe manufactures in Hebei Pro., China, with an annual capacity of 10000 tons. Products are manufactured in accordance with international standards such as ANSI,DIN, EN1092, JIS, BS, GOST standards or with customers special requirement and design. HongCheng has obtained ISO 9002 certificate and follows in line with the system in the management and production. Advanced production and inspection equipment, rich experience and strict management systems well ensure its product quality.

HongCheng was licensed with independent export entitlement in 2001 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.

FLANGES DIN / EN
Type Norm Nominal Pressure Dimension
Welding Neck Flange EN1092-1 Typ11 PN6-PN400 DN10-DN2000
DIN 2631 - DIN 2638
Blind Flanges EN1092-1 Typ05 PN6-PN400 DN10-DN2000
DIN 2527
Flat Flanges for welding DIN 2573 PN6-PN40 DN10-DN2000
DIN 2576
EN1092-1 Typ01
Loose Flange + Weld-on Collars DIN2642 PN10-40 DN10-DN2000
EN1092-1 Typ02
EN1092-1 Typ32
Loose Flange + Weld Neck Collars DIN 2673 PN10-PN40 DN15-DN2000
EN1092-1 Typ04
EN1092-1 Typ34
Threaded Flanges EN1092-1 TYP13 PN10-PN40 ½“-6“

Materials: P250GH/C22.8, P265GH, 16Mo3, 13CrMo4-5, 10CrMo9-10, P355N, P355QH1, 1.4301, 1.4307, 1.4404, 1.4541, 1.4571, 1.4462, 1.4539

FLANGES ASME / ASTM / ANSI
Type Norm Class Dimension
Welding Neck Flanges ASME B16.5 150lbs – 2500lbs ½“-48“
ASME B16.47 Serie A
ASME B16.47 Serie B
BS3293
Blind Flanges ASME B16.5 150lbs – 2500lbs ½“-48“
ASME B16.47 Serie A
ASME B16.47 Serie B
BS3293
Slip On Flanges ASME B16.5 150lbs – 300 lbs ½“-24“

Materials: A105, C21, 316/316L, 304/304L, A350 LF2

Materail Mechanical Properties:

      MECHANICAL PROPERTIES 力学性能 MECHANICAL PROPERTIES 力学性能
  Standard   C Mn P S Si Cu Ni Cr Mo Tensile Strength Yield Strength Elongation Reduction of Area Hardness
      碳 锰 磷 硫 硅 铜 镍 铬 钼 抗拉强度 屈服强度 延伸率最小 面收缩率 硬度
      % % % % % % % % % Mpa Mpa % % HB
P245GH EN10222-2 MIN% 0.08 0.50               410 245 25 30
(1.0352)   MAX% 0.20 1.30 0.025 0.015 0.40         530       180
P250GH(C22.8) EN10222-2 MIN% 0.18 0.30               410 250 25
(1.0460)   MAX% 0.23 0.90 0.025 0.015 0.40   0.30 0.30   540       180
P265GH EN10273 MIN%   0.80               410 265 22
(1.0452)   MAX% 0.20 1.40 0.025 0.015 0.40 0.30 0.30 0.30 0.08 530
P280GH EN10222-2 MIN% 0.08 0.90               460 280 23 42
(1.0426)   MAX% 0.20 1.50 0.025 0.015 0.40   0.30 0.30 0.08 580       180
P235GH EN10273 MIN%   0.60               360 235 25
(1.0345)   MAX% 0.16 1.20 0.025 0.015 0.35 0.30 0.30 0.30 0.08 480
P295GH EN10273 MIN% 0.08 0.90               460 295 21
(1.0481)   MAX% 0.20 1.50 0.025 0.015 0.40 0.30 0.30 0.30 0.08 580
P355GH EN10273 MIN% 0.10 1.00               510 355 20
(1.0473)   MAX% 0.22 1.70 0.025 0.015 0.60 0.30 0.30 0.30 0.08 650
S235JR(RST37-2) EN10025-2 MIN%   0.30               360 235 26 40
(1.0038)   MAX% 0.17 0.65 0.035 0.035 0.30     0.30   510     45 180
S275JR EN10025-2 MIN%                   430 275 23   122
(1.0044)   MAX% 0.21 1.50 0.035 0.035   0.55       540       162
S355JR EN10025-2 MIN%                   510 355
(1.0045)   MAX% 0.24 1.60 0.035 0.035 0.55 0.55       600

Product Pictures:

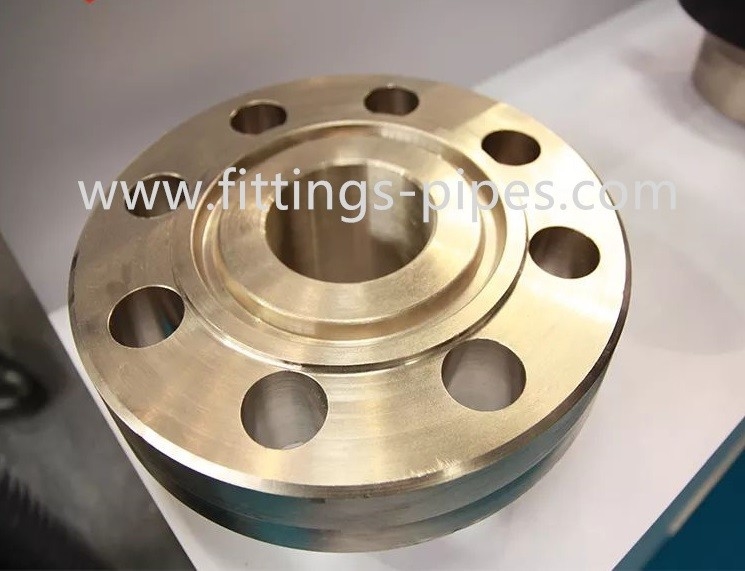

Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM 0

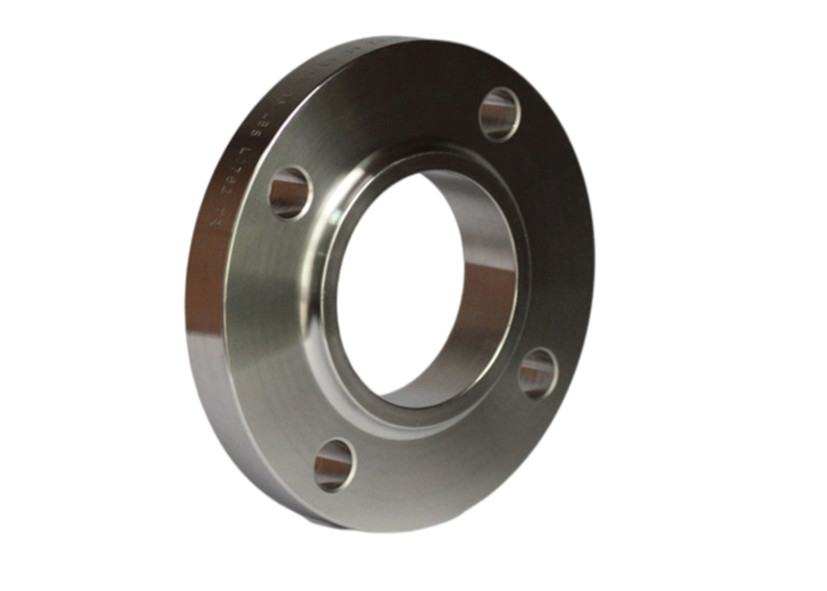

Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM 1

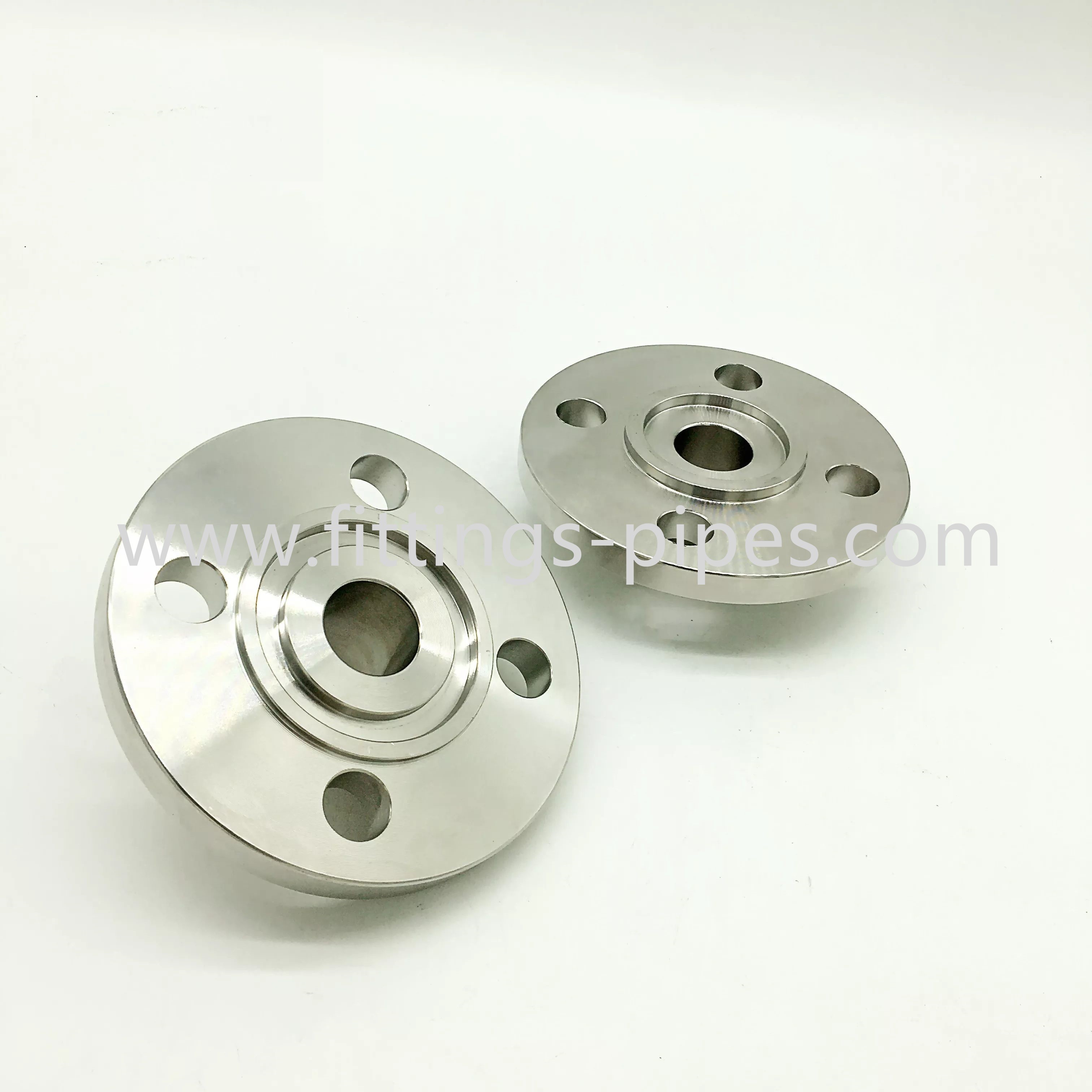

Din2633 Pn16 High Pressure Pipe Flanges , Forged Flanges And Fittings OEM 2



FAQ:



　　1. Are you a factory or trading company?

　　We are a factory.we also have cooperated factory doing other steel business.

　　2. How can I get a quotation from you ?

　　You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.

　　And you can also find our contact information on contact page.

　　3.Can I get samples before order ?

　　Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

　　4. what is your delivery time ?

　　The time of delivery is usually around 20 days(1*20FT as usual).

　　We can send out in 2 days, if it has stock.

　　5.What is your payment terms?

　　Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.

　　6.How does your factory do regarding quality control?

　　Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.

　　And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,

　　we will make the last test to pick up the unqualified products
