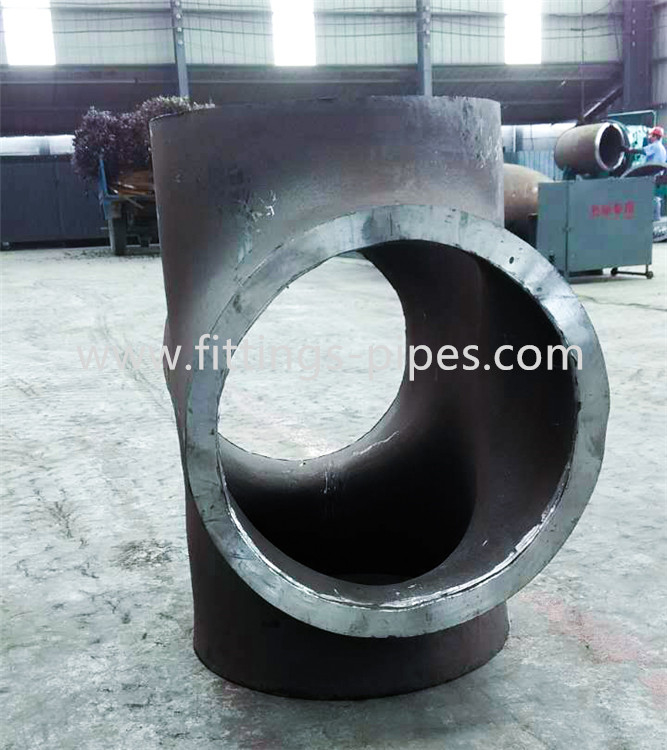

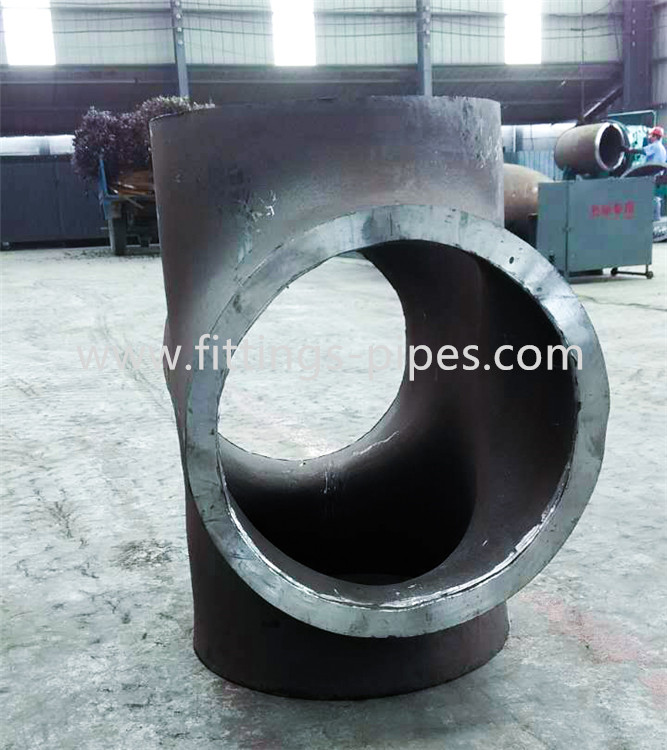

Astm A240 14" Sch60 Seamless Tee High Pressure Duplex 2205

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO32 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: consult
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000Tons per year
  • Detail Information
  • Product Description

Detail Information

Material:: Carbon Stainless Alloy Steel Certification :: LR,BV,SGS,BIS,DNV,CRN,ABS,TUV
Payment Terms :: T/T Or Western Union Or LC Packaging Details :: WOODCASE Or PLATE
Thickness: Sch30 Sch60 Sch80 Sch100 Sch120 Material: P91 P22 P9 P1 P2 15crmo 12cr1mov A105 A106 Wpb
Size Range:: 1/2’~10’(Seamless);12’~72’(Welded) Certificate:: API, And ISO9001:2000 Certificates,CE,BV, Etc.
High Light:

14" seamless tee

,

sch60 seamless tee

,

duplex 2205 seamless tee

Product Description

Astm A2401/2 -18" Sch80 -XXSDuplex 2205 Seamless High Pressure Tee



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Hongcheng products also won the great praise among the customers.
ASTM A815 specification covers two general classes, WP and CR, of wrought ferritic, ferritic/austenitic, and martensitic stainless steel fittings of seamless and welded construction. Class WP fittings are subdivided into four subclasses: Classes WP-S, WP-W, WP-WX, and WP-WU. The material for fittings shall consist of forgings, bars, plates, or seamless or welded tubular products. The steel shall be melted by electric furnace, vacuum furnace, or electric furnace followed by vacuum or electroslag-consumable remelting. Forging or shaping operations shall be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining or by combination of two or more of these operations. The materials shall undergo heat treatment and shall follow the required cooling process and tempering temperature. Chemical and product analyses shall be performed and shall conform to the required chemical composition in carbon, manganese, phosphorus, silicon, sulfur, nickel, chromium, molybdenum, copper, nitrogen, and titanium. The mechanical properties of the fitting material shall conform to the required values in yield strength, tensile strength, elongation, and hardness.
Duplex 2205 Chemical Composition

ASME B16.9 S32205 Duplex Pipe Fittings Dimensions

NOMINAL PIPE SIZE

ALL FITTINGS

ALL FITTINGS

ELBOWS AND TEES

180 DEG RETURN BENDS

180 DEG RETURN BENDS

180 DEG RETURN BENDS

REDUCERS

CAPS

NPS

O.D. at Bevel (1), (2)

I.D. at End

Centre -to- End Dimension A, B, C, M

Centre-to- Centre O

Back-to- Face K

Alignment of Ends U

Overall Length H

Overall Length E

(1), (3), (4)

½ to 2½

0.06

0.03

0.06

0.25

0.25

0.03

0.06

0.12

-0.03

3 to 3 ½

0.06

0.06

0.06

0.25

0.25

0.03

0.06

0.12

4

0.06

0.06

0.06

0.25

0.25

0.03

0.06

0.12

5 to 8

0.09

0.06

0.06

0.25

0.25

0.03

0.06

0.25

-0.06

10 to 18

0.16

0.12

0.09

0.38

0.25

0.06

0.09

0.25

-0.12

20 to 24

0.25

0.19

0.09

0.38

0.25

0.06

0.09

0.25

-0.19

26 to 30

0.25

0.19

0.12

0.19

0.38

-0.19

32 to 48

0.25

0.19

0.19

0.19

0.38

-0.19

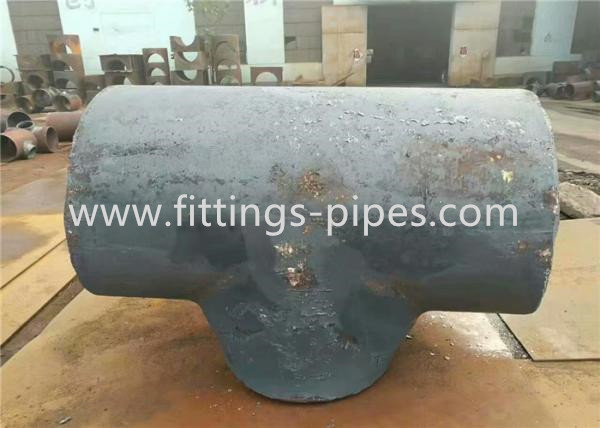

Astm A240 14" Sch60 Seamless Tee High Pressure Duplex 2205 0

Duplex 2205 Mechanical Properties

Density

Melting Point

Yield Strength (0.2%Offset)

Tensile Strength

Elongation

7.8 g/cm3

1350 °C (2460 °F)

Psi – 80000 , MPa – 550

Psi – 116000 , MPa – 800

15%



Astm A240 14" Sch60 Seamless Tee High Pressure Duplex 2205 1

Duplex 2205 Fittings Equivalent Grades

STANDARD

WERKSTOFF NR.

UNS

ASTM A815 WP-S

1.4462

S32205





Astm A240 14" Sch60 Seamless Tee High Pressure Duplex 2205 2



Astm A240 14" Sch60 Seamless Tee High Pressure Duplex 2205 3



Astm A240 14" Sch60 Seamless Tee High Pressure Duplex 2205 4

FAQ

Q. How long can make delivery?

A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

Q:Can you provide the samples?

A:Samples can be provided with samples charge and courier fee by the buyer's side.

Q:Are the products in stock?

A:Yes.Most of our products are in stock.So we can prompt delivery.

Q:Can you accept customize?

A:Yes.It can be customized as per the customers' request.

Q:What about the quality?

A:According to the standard for production.And we can also accept the third-party inspection

and quarantine.
