Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 12" TO 20" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 0.5Ton |
| Price: | Negotiation |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100000Tons per year |
|
Detail Information |
|||
| Place Of Origin :: | CHINA | Material:: | Stainless Steel |
|---|---|---|---|
| Variety: | Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8 | Certification :: | ISO, API, CE |
| Standard:: | Arsenic Petroleum Corporation B16.9 | Supply Ability :: | 10000 PC Per Month |
| Authentication: | ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API | Connection:: | Soldering |

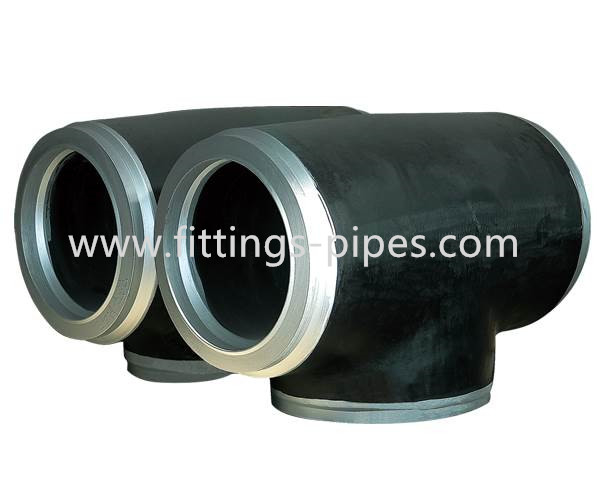

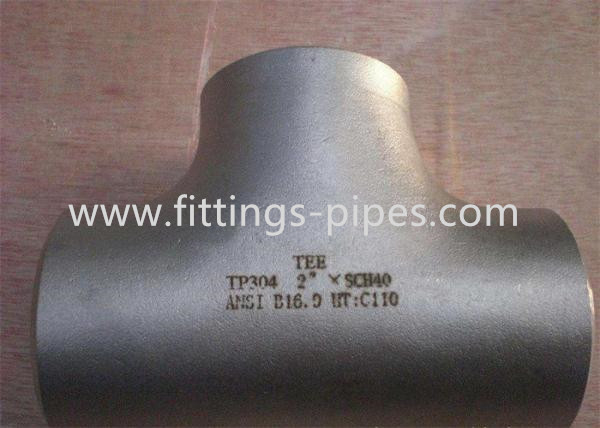

| High Light: | astm a234 steel pipe tee fittings,8 steel pipe tee fittings |
||
Product Description
Low carbon steel--carbon content≤0.25%
Medium carbon steel--carbon content>0.25%≤0.60%.
High carbon steel - carbon content > 0.60% according to the total content of alloying elements: in order to improve the performance of steel, on the basis of smelting carbon steel, the steel made by adding some alloying elements is alloy steel, such as chromium steel , manganese steel, chromium-manganese steel, chromium-nickel steel, etc. Alloy steel, also known as special steel, has some special properties, such as high hardness, high wear resistance, high toughness, corrosion resistance, etc. Often added alloying elements in steel There are si,w,mn,cr,ni,mo,v,ti etc.
| C | 1 |
| N | 0.03 |
| P | 0.02 |
| Si | 2 |
| Mn | 3.0 – 3.5 |
| Mo | 22.0 – 23.0 |
| Fe | 0.03 |
| Cr | 4.5 – 6.5 |
| S | 0.14 – 0.2 |
| Ni | Bal |
Duplex 2205 Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15% |
Duplex 2205 Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| ASTM A815 WP-S | 1.4462 | S32205 |
ASME B16.9 S32205 Duplex Pipe Fittings Dimensions
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
| NPS | O.D. at Bevel (1), (2) | I.D. at End | Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| (1), (3), (4) | ||||||||
| ½ to 2½ | 0.06 | 0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| -0.03 | ||||||||
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| -0.06 | ||||||||
| 10 to 18 | 0.16 | 0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| -0.12 | ||||||||
| 20 to 24 | 0.25 | 0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| -0.19 | ||||||||
| 26 to 30 | 0.25 | 0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
| -0.19 | ||||||||
| 32 to 48 | 0.25 | 0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
| 1 | Material: |
carbon steel (ASTM A234WPS, A234WPC, A420 WPL6), (ST45.8 A105 A106 STG42) Alloy steel(ASTM A234 WP12/WP11/WP22/WP5/WP9/WP91) Stainless steel(ASTM A403 WP304/WP304L/WP316/WP316L) |
| 2 | Standard: | ASME/ANSI B16.9, DIN2650,2615,2616,2617,JIS B2311, 2312,2313, EN 10253-11, EN10253-2, GB |
| 3 | Size: | 1/2inch~48inch |
| 4 | Thickness: | SCH10,SCH20,SCH30,SCH STD, SCH40, SCH60,SCH XS, SCH80, SCH100, SCH120,SCH140,SCH160,SCH XXS |
| 5 | Type: | Elbow, tee, reducer, nipple, plug, union, bushing, cap, etc |
| 6 | Surface: | Transparent oil, rust-proof black oil, hot galvanized |
| 7 | Weight: | Heavy light, light weight |
| 8 | MOQ: | 1 piece |
| 9 | Packaging: |
1)Wooden case 2)Pallet 3)As per customer’s requirements |
| 10 | Application: | Oil, chemical industrial, water conservancy, electric power, boiler, machinery, metallurgy, etc |
FAQ:
1. Are you a factory or trading company?
We are a factory.we also have cooperated factory doing other steel business.
2. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
3.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4. what is your delivery time ?
The time of delivery is usually around 20 days(1*20FT as usual).
We can send out in 2 days, if it has stock.
5.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
6.How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
we will make the last test to pick up the unqualified products
