Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 1/2" TO 18" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 0.5Ton |
| Price: | Negotiation |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100000Tons per year |
|
Detail Information |
|||
| Place Of Origin :: | CHINA | Variety: | Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8 |
|---|---|---|---|
| Certification :: | ISO, API, CE | Material:: | Stainless Steel |
| Usage:: | Oil And Gas Water Industry | Authentication: | ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API |
| Standard:: | Arsenic Petroleum Corporation B16.9 | Port:: | Tianjin |
| High Light: | seamless stainless steel pipe elbow fittings,astm a 355 tp 304l stainless elbow,schedule40 stainless steel pipe elbow |
||
Product Description
ASTM A234 Alloy Steel Fittings ASTM A234 Alloy pipe fittings
| Product Name | ASTM A234 alloy steel pipe fitting (WP51, WP5, WP9, WP11, WP91) | |
| Size | 1/2"~20" (Seamless) | |
| Thickness | STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH80,...etc | |
| Standard | ANSI B16.9, ASME, JIS, DIN, GOST, GB | |
| Material | ASTM | Carbon Steel: ASTM A234 WPB, A234 WPC, A420 WPL6 |
| Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 1Cr18Ni9Ti, ....etc | ||
|
Alloy Steel: ASTM A234 WP12, WP11,WP22, WP5,,WP9, WP91, ASTM A420 WPL6, WPL3 |
||
| DIN | Carbon Steel:St37.0 , St35.8, St45.8 | |
| Stainless Steel:1.4301, 1.4306, 1.4401, 1.4571 | ||
| Alloy Steel:1.7335, 1.7380, 1.0488(1.0566) | ||
| JIS | Carbon Steel: PG370, PT410 | |
| Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, SUS321,..etc | ||
| Alloy Steel: PA22, PA23, P24, PA25, PL380 | ||
| GB | #10, #20, 20G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo | |
| Ends | Bevel end, butt weld | |
| Applications |
Petrochemical industry Pharmaceutic industry Power plant Water treament Construction,...etc |
|
| Packing |
Seaworthy Packing Customers' request plastic bags + wooden or olywood case or pallet carton |
|
| Advantage |
- Provide Samples - Ready Stock - Fast Delivery - Available all sizes - High Quality - Competitive Price |
|
| Main Production Name |

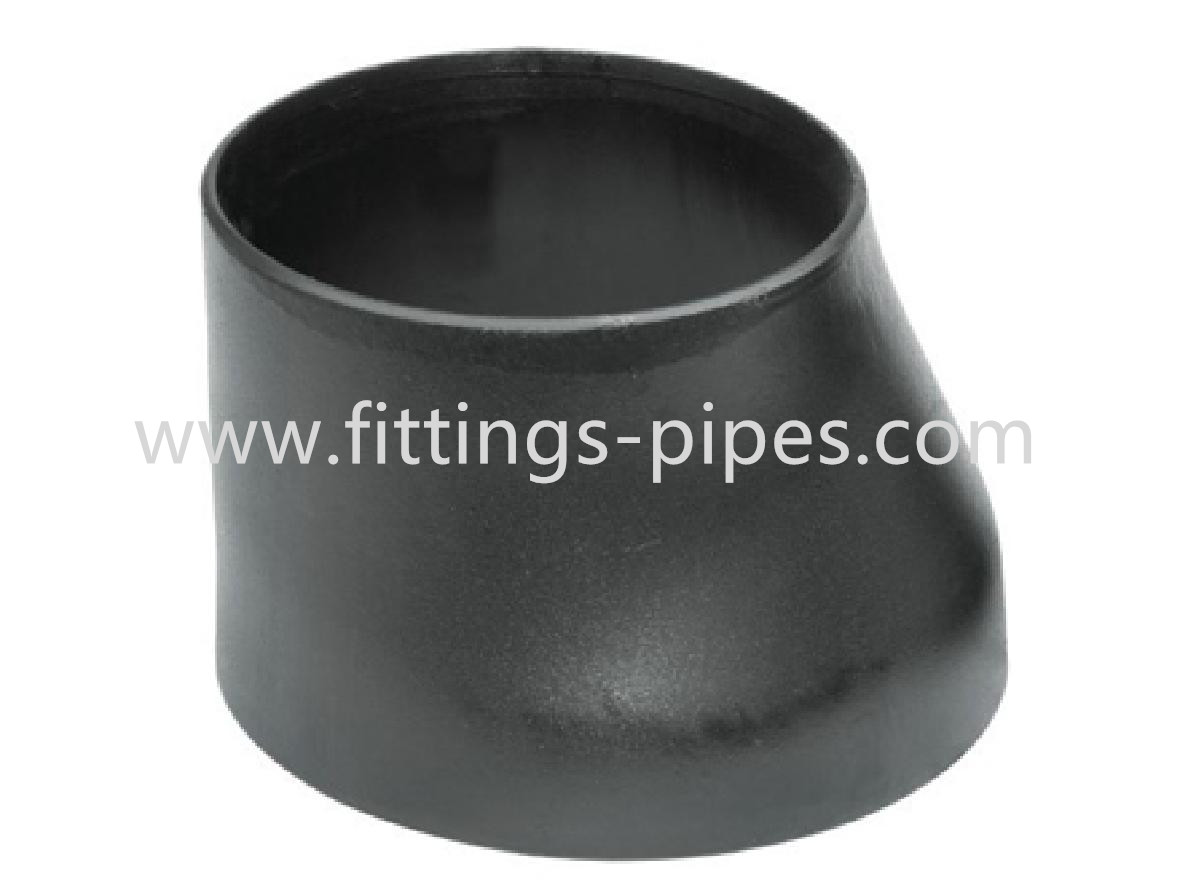

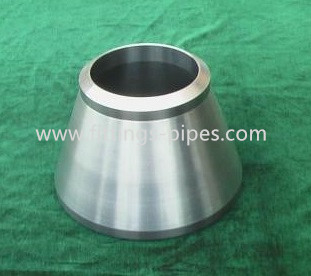

45 / 90 / 180 Long / Short Radius Elbows, Equal / Reducing Crosses, Concentric /Eccentric Reducers, Caps, Stub Ends,Pipe fittings |
| Size Range | From ½” up to 106” |
| Schedule | SCH STD, XS, XXS, SCH 10 ~ SCH 160 |
| Main Material Code: | |
| Carbon Steel | ASTM A234 WPB, WPC; ASTM A420 WPL9, WPL3, WPL6, WPHY-42 |
| WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70, | |
| Alloy Steel | ASTM A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91 |
| Nickel alloy steel | Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800, |
| Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500 | |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254 |
|
Duplex super Duplex stainless steel |
ASTM A 815 UNS S31803, UNS S32750, UNS S32760 |
| Standard | ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
| Certification: | ISO9001:2000 , API , BV , , LOIYD |
|
Applications range: |
Petroleum, chemical, power, gas, metallurgy, shipbuilding.construction,water and nuclear power etc. |
| Quality | High lever |
|
The third party inspection: |
BV,,LOIYD,TUV,and other party alloyed by clients. |
| Delivery Time: | At the earliest ,within the period required by customer. |
| Remark: | Also can supply IBR fittings and Specialized NACE & HIC Fittings |
| Type | Reducing |
| Size | Seamless Tee:1/2"~24" DN15~DN600 Welded Tee: 1/2"~100" DN15~DN2500 |
| Wall thickness | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s |
| Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
| Material | Carbon steel: ASTM A234 WPB,WPC,ASTM A105 Alloy steel: ASTM A234 WP1-WP12-WP11-WP22-WP5-WP91-WP911 Stainless steel: ASTM A403 WP 304-304L ASTM A403 WP 316-316L ASTM/ASME A403 WP 321-321 Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6 High performance: ASTM/ASME A860 WPHY 42- 46- 52- 60- 65- 70 |
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
| Packing | wooden case, pallet or as customers' requirement |
| Applications | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Min order | 1 piece |
| Delivery time | 7days after receipt of advance payment |
| Certification | API, ISO9001:2000 |
| Delivery Term | FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L |
DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
| NPS | O.D. at Bevel (1), (2) |
I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ |
0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 |
0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 |
0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 |
0.38
|
ASTM A234 Scope:
1.1 This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, and MSS-SP-95. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures. Fittings differing from these ASME and MSS Standards shall be furnished in accordance with Supplementary Requirement S58 of Specification A 960/A 960M.
1.2 Optional supplementary requirements are provided for fittings where a greater degree of examination is desired. When desired, one or more of these supplementary requirements may be specified in the order.
1.3 This specification does not cover cast welding fittings or fittings machined from castings. Cast steel welding fittings are governed by Specifications A 216/A 216M and A 217/A 217M.
1.4 This specification is expressed in both inch-pound units and in SI units. However, unless the order specifies the applicable “M” specification designation (SI units), the material shall be furnished to inch-pound units.
1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining
FAQ:
1. Are you a factory or trading company?
We are a factory.we also have cooperated factory doing other steel business.
2. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
3.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4. what is your delivery time ?
The time of delivery is usually around 20 days(1*20FT as usual).
We can send out in 2 days, if it has stock.
5.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
6.How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
we will make the last test to pick up the unqualified products
