Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 1/2" TO 72 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | consult |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100000Tons per year |
|
Detail Information |
|||
| Place Of Origin :: | CHINA | Manufacture Standard:: | ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90, GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
|---|---|---|---|
| Certificate:: | API, And ISO9001:2000 Certificates,CE,BV, Etc. | Payment Terms :: | T/T Or Western Union Or LC |
| Thickness: | Sch5S~Sch160XXS | Size Range:: | 1/2’~10’(Seamless);12’~72’(Welded) |
| Application:: | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Etc | Packaging Details :: | WOODCASE Or PLATE |
| High Light: | sch160 steel pipe tee fittings,6" steel pipe tee fittings |
||

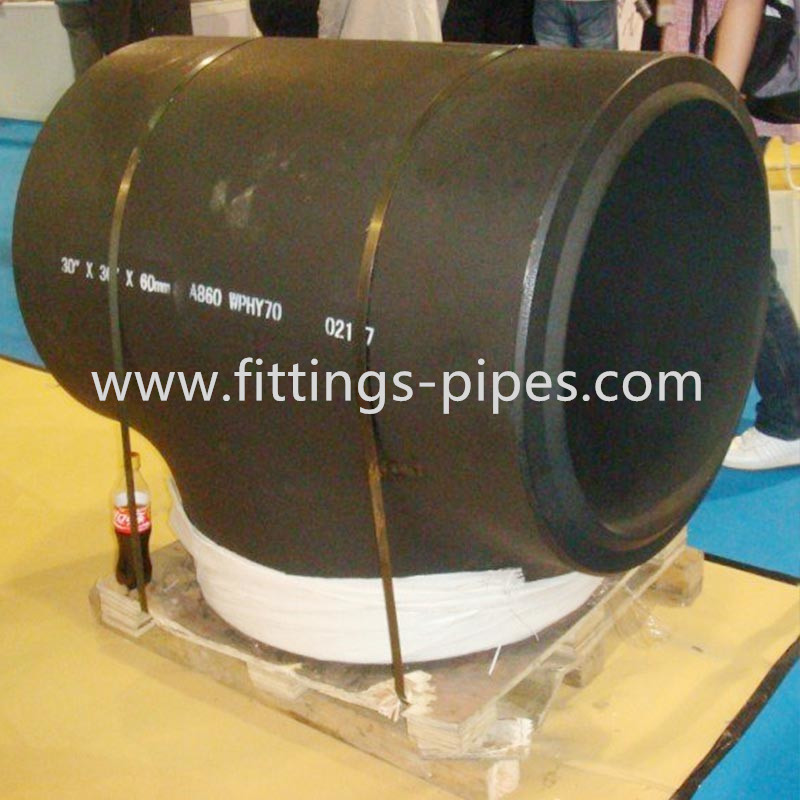

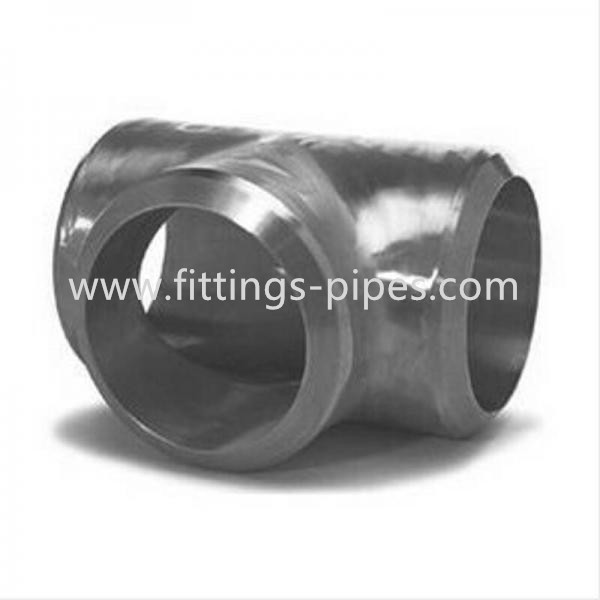

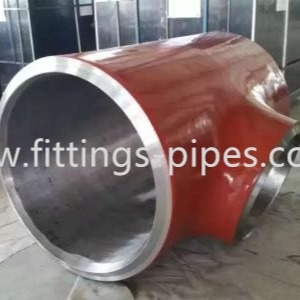

Product Description
| Type | Tee |
| Size | 1/2"-48" |
| WT | SCH10-SCH160 |
| Standard | ANSI B16.9, ASME, GB, DIN, JIS |
| Material | A234 WPB, A420 WPL6,MSS SP75WPHY52-WPHY70,A234 WP5, WP9, WP11, |
| WP12, WP22, WP91, A403 WP304(H),WP304L,WP316(H),WP316L,WP321,301 | |
| Packaging | Customized packing available (coating, end-beveling, cap etc.) |
| Application | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction etc |
| Others | Special design available according to your request |
Technical Drawing Size Specification
|
Unit : inch Nominal |
Outside Dia. (OD) |
Wall Thickness (T) |
Tees Center To Ends C.M |
|||
| Sch.5S | Sch.10S | Sch.40S | Sch.80S | |||
| 1/2 | 0.840 | 0.065 | 0.083 | 0.109 | 0.147 | 1.00 |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.113 | 0.154 | 1.13 |
| 1 | 1.315 | 0.065 | 0.109 | 0.133 | 0.179 | 1.50 |
| 1-1/4 | 1.660 | 0.065 | 0.109 | 0.140 | 0.191 | 1.88 |
| 1-1/2 | 1.900 | 0.065 | 0.109 | 0.145 | 0.200 | 2.25 |
| 2 | 2.375 | 0.065 | 0.109 | 0.154 | 0.218 | 2.50 |
| 2-1/2 | 2.875 | 0.083 | 0.120 | 0.203 | 0.276 | 3.00 |
| 3 | 3.500 | 0.083 | 0.120 | 0.216 | 0.300 | 3.38 |
| 4 | 4.500 | 0.083 | 0.120 | 0.237 | 0.337 | 4.13 |
| 5 | 5.563 | 0.109 | 0.134 | 0.258 | 0.375 | 4.88 |
| 6 | 6.625 | 0.109 | 0.134 | 0.280 | 0.432 | 5.63 |
| 8 | 8.625 | 0.109 | 0.148 | 0.322 | 0.500 | 7.00 |
| 10 | 10.750 | 0.134 | 0.165 | 0.375 | 0.500 | 8.50 |
| 12 | 12.750 | 0.156 | 0.180 | 0.375 | 0.500 | 10.00 |
| 14 | 14.000 | 0.156 | 0.250 | 0.375 | 0.500 | 11.00 |
| 16 | 16.000 | 0.165 | 0.250 | 0.375 | 0.500 | 12.00 |
| 18 | 18.000 | 0.165 | 0.250 | 0.375 | 0.500 | 13.50 |
| 20 | 20.000 | 0.188 | 0.250 | 0.375 | 0.500 | 15.00 |
| 24 | 24.000 | 0.218 | 0.250 | 0.375 | 0.500 | 17.00 |
used to
Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etcUsed to the pipes connecting
