Detail Information
Product Description

Detail Information
Material:	P91 P22 P9 P1 P2 15crmo 12cr1mov A105 A106 Wpb	Payment Terms ::	T/T Or Western Union Or LC
Material::	Carbon Stainless Alloy Steel	Packaging Details ::	WOODCASE Or PLATE
Thickness:	Sch30 Sch60 Sch80 Sch100 Sch120	Certification ::	LR,BV,SGS,BIS,DNV,CRN,ABS,TUV
Highlight:	astm a335 wp91 alloy tee , 18" alloy tee

Product Description

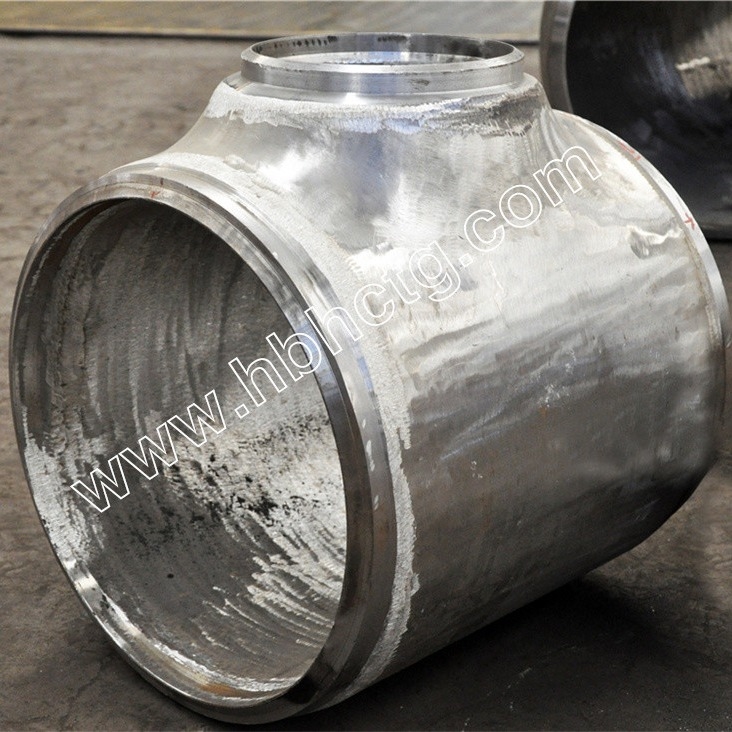

Astm A335 Wp91 18" Sch80 High Pressure Thick Wall Alloy Tee

Product Description:

The alloy tee is a necessary product that we need to use when installing some pipes. The alloy tee is a connecting pipe fitting, which can realize the connection of two pipes with the same diameter, and can make the angle of the two pipes at 90 degrees. It can also be from other angles, so how much do you know about alloy tee? Do you know the production method of alloy tee? Let's take a look at some related introductions of alloy tee.
Alloy tee is composed of a variety of elbows, not only in rich styles, but also in various materials made of alloy tee. The alloy tee that we often see are carbon steel alloy tee, manganese steel alloy Tee and nickel steel alloy tee and so on.
Alloy tee has a very wide range of uses in our daily life. In general, alloy tee made of bronze is mainly used in the connection of some tap water pipes. This is the most common alloy tee pipe we see. Our living standards are improving day by day, and now we can also see stainless steel alloy tee fittings in tap water pipes.
The alloy tee made of manganese steel is a kind of alloy tee with strong bearing capacity. It can withstand strong impact and has anti-extrusion characteristics. It is widely used in pipes for conveying concrete, although it will be worn to a large extent. pipe fittings, but it will not affect its effect

Size : 1/8"NB TO 100"NB

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy Reducer
Standard
ASTM / ASME SB 336.
UNS 10276 (HASTELLOY C 276 Reducer)
UNS 2200 (NICKEL 200 Reducer),
UNS 2201 (NICKEL 201 Reducer),
UNS 4400 (MONEL 400 Reducer),
UNS 8020 (ALLOY 20 Reducer),
UNS 8825 (INCONEL 825 Reducer),
UNS 6600 (INCONEL 600 Reducer),
UNS 6601 (INCONEL 601 Reducer),
UNS 6625 (INCONEL 625 Reducer),
Value Added Services
Hot Dip Galvanizing
Epoxy Coating

Standard

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness T	Center To End C	Center To End M	Pipe Schedule	Weight Pounds
2-Jan	0.84	0.622	0.109	1	1	40	0.35
4-Mar	1.05	0.824	0.113	1.12	1.12	40	0.5
1	1.32	1.049	0.133	1.5	1.5	40	0.75
1 1/4	1.66	1.38	0.14	1.88	1.88	40	1.3
1 1/2	1.9	1.61	0.145	2.25	2.25	40	1.9
2	2.38	2.067	0.154	2.5	2.5	40	3.2
2 1/2	2.88	2.469	0.203	3	3	40	5.8
3	3.5	3.068	0.216	3.38	3.38	40	7.2
3 1/2	4	3.548	0.226	3.75	3.75	40	9.5
4	4.5	4.026	0.237	4.12	4.12	40	12.7
5	5.56	5.047	0.258	4.88	4.88	40	20.8
6	6.62	6.065	0.28	5.62	5.62	40	33.1
8	8.62	7.981	0.322	7	7	40	56.5
10	10.75	10.02	0.365	8.5	8.5	40	90.9
12	12.75	12	0.375	10	10	*	136
14	14	13.25	0.375	11	11	30	162
16	16	15.25	0.375	12	12	30	206
18	18	17.25	0.375	13.5	13.5	*	272
20	20	19.25	0.375	15	15	20	350
24	24	23.25	0.375	17	17	20	508
30	30	29.24	0.38	22	22	*	835
36	36	35.24	0.38	26.5	26.5	*	1,294
42	42	41.24	0.38	30	28	*	1,495
48	48	47.24	0.38	35	33	*	2,300

Extra Strong

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness T	Center To End C	Center To End M	Pipe Schedule	Weight Pounds
2-Jan	0.84	0.546	0.147	1	1	80	0.37
4-Mar	1.05	0.742	0.154	1.12	1.12	80	0.58
1	1.315	0.957	0.179	1.5	1.5	80	0.87
1 1/4	1.66	1.278	0.191	1.88	1.88	80	1.6
1 1/2	1.9	1.5	0.2	2.25	2.25	80	2.3
2	2.375	1.939	0.218	2.5	2.5	80	3.9
2 1/2	2.875	2.323	0.276	3	3	80	6.5
3	3.5	2.9	0.3	3.38	3.38	80	9
3 1/2	4	3.364	0.318	3.75	3.75	80	12.2
4	4.5	3.826	0.337	4.12	4.12	80	16.2
5	5.563	4.813	0.375	4.88	4.88	80	26.6
6	6.625	5.761	0.432	5.62	5.62	80	41.8
8	8.625	7.625	0.5	7	7	80	76.2
10	10.75	9.75	0.5	8.5	8.5	60	115
12	12.75	11.75	0.5	10	10	*	169
14	14	13	0.5	11	11	*	237
16	16	15	0.5	12	12	40	284
18	18	17	0.5	13.5	13.5	*	353
20	20	19	0.5	15	15	30	442
24	24	23	0.5	17	17	*	625
30	30	29	0.5	22	22	*	1,065
36	36	35	0.5	26.5	26.5	*	1,610
42	42	41	0.5	30	28	*	1,788
48	48	47	0.5	35	33	*	2,300

Astm A335 Wp91 Alloy Tee 18" Sch80 High Pressure Thick Wall 1

FAQ

Q. How long can make delivery?

A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 44 "
Payment & Shipping Terms:
Minimum Order Quantity:	1PC
Price:	consult
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000Tons per year

Astm A335 Wp91 Alloy Tee 18" Sch80 High Pressure Thick Wall

astm a335 wp91 alloy tee

18" alloy tee

Astm A335 Wp91 18" Sch80 High Pressure Thick Wall Alloy Tee

Product Description:

Size : 1/8"NB TO 100"NB

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Materials Stainless Steel Reducer - SS Reducer ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer ASTM A 815 UNS NO S 31803 , S 32205.

Standard

Nominal

Pipe Size

Outside

Diameter

Inside

Diameter

Wall

Thickness T

Center

To End C

Center

To End M

Pipe

Schedule

Weight

Pounds

2-Jan

0.84

0.622

0.109

1

1

40

0.35

4-Mar

1.05

0.824

0.113

1.12

1.12

40

0.5

1

1.32

1.049

0.133

1.5

1.5

40

0.75

1 1/4

1.66

1.38

0.14

1.88

1.88

40

1.3

1 1/2

1.9

1.61

0.145

2.25

2.25

40

1.9

2

2.38

2.067

0.154

2.5

2.5

40

3.2

2 1/2

Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.
