Astm A335 P22 Seamless Alloy Tube Thickness 1mm

Product Details:
Place of Origin: China
Brand Name: HongCheng
Model Number: 1/2" TO 36 "
Payment & Shipping Terms:
Minimum Order Quantity: 0.5Ton
Price: 0.5 Ton US $3870/ Ton;>3 Tons US $2310/ Ton
Packaging Details: Standard export seaworthy package,or as required
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Description: Alloy Steel Pipe, Alloy Seamless Steel Pipe, Alloy Welded Pipe,seamless Alloy Steel Pipe,alloy Pipe,alloy Steel Tube Standard: ASTM A335,ASTM A213,JIS G3458,JIS A3462,DIN17175,GB5310,GB9948
Thickness:: 1-120 Mm Tolerance:: ±1%
Payment Terms :: L/C, D/A, D/P, T/T, Western Union, MoneyGram Thickness :: SCH5S, SCH10S, SCH20S,SCH20, SCH30,STD, SCH40, SCH60, SCH80, SCH100, SCH140, SCH160,XS
End Protector:: Plastic Pipe Cap Packaging Details:: Standard Sea-worthy Packing Wooden Cases Or Plastic By Bundles As Customer's Required
High Light:

astm a335 seamless alloy tube


thickness 1mm seamless alloy tube


alloy 22 seamless pipe

Product Description

Steel Pipe Alloy Astm A335 P22 Alloy Steel Pipe


Alloy seamless steel pipe is a kind of seamless steel pipe, its performance is much higher than that of general seamless steel pipe, because this kind of steel pipe contains more Cr, its high temperature, low temperature and corrosion resistance performance is not compared with other seamless steel pipe, so alloy pipe is widely used in petroleum, chemical industry, electric power, boiler and other industries.

Alloy seamless steel pipe contains elements such as silicon, manganese, chromium, nickel, molybdenum, tungsten, vanadium, titanium, niobium, zirconium, cobalt, aluminum, copper, boron, rare earth, etc.

Alloy seamless steel pipe (Seamless Steel Tube) with hollow section, no joints around the strip steel. The steel pipe has a hollow section and is widely used as a pipeline for conveying fluid, such as oil, natural gas, gas, water and some solid materials. Compared with solid steel such as round steel, alloy seamless steel pipe is light weight when bending and torsion strength is the same. It is an economic section steel, which is widely used in the manufacture of structural parts and mechanical parts, such as oil conveying, stair handrails, bicycle frames and steel scaffolding used in construction. Making ring parts with alloy seamless steel pipe can improve material utilization, simplify manufacturing process, and save material and processing time, such as rolling bearing ring, Jack sleeve and so on. Steel pipe has been widely used to manufacture. Alloy seamless steel pipe or all kinds of conventional weapons indispensable materials, gun barrel, barrel and so on must be made of steel pipe. In addition, when the ring section is subjected to internal or external radial pressure, the force is more uniform, so most alloy seamless steel tubes are circular tubes

Production process

Hot rolling (extruded seamless steel pipe): pipe billet → heating → perforation → three-roll oblique rolling, continuous rolling or extrusion → pipe → diameter (or diameter reduction) cooling pipe straightening → hydraulic test (or flaw detection) marking → storage.

cold drawn (rolled) seamless steel tube billet → heating → perforation → head → annealing → pickling → oiling (copper plating), multi-pass cold drawing (cold rolling)→ billet tube → heat treatment, straightening → water pressure test (flaw detection), marking → storage

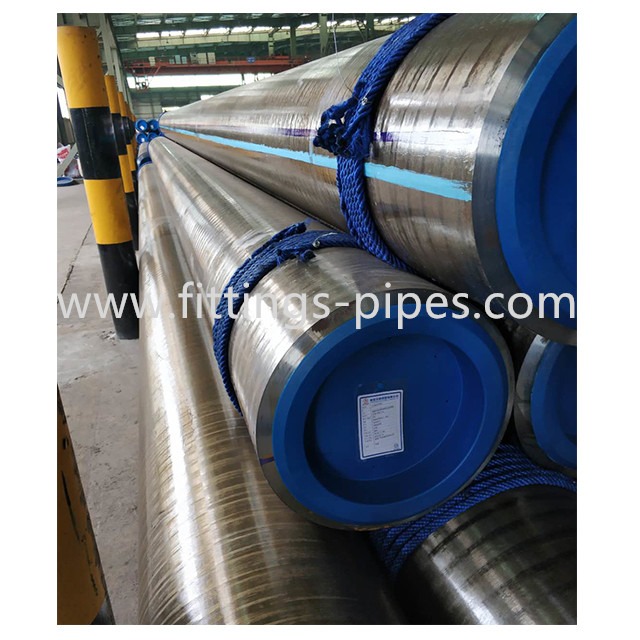

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 0

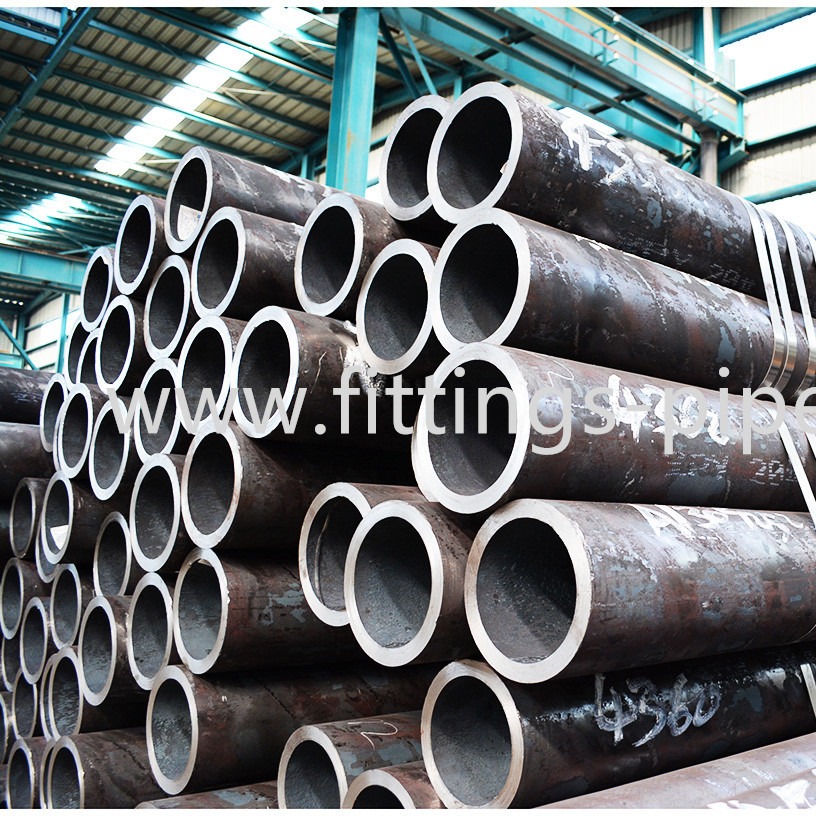

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 1

No. Mechanical properties in normal temperature
standard number Steel No. σ s σ b δ s α k
  (mpa) (mpa) (%) (J/cm2)
GB5310 12CrMo 206 412~559 21 69u
15CrMo 235 441~638 21 59u
12Cr1MoV 255 471~638 21 59u
12Cr2Mo 280 450~600 20
ASTM A335 P1 207 379 22
P11 207 413 22
P12 207 413 22
P2 207 379 22
P22 207 413 22
P5 207 413 22
P9 207 413 22
DIN17175 19Mn5 300~310 510~610 19
13CrMo44 280~290 440~590 22
14MoV63 310~319 460~610 20
10CrMo910 269~280 450~600
JIS G3458 STPA12 206 382
STPA20 206 412
STPA22 206 412
STPA23 206 412
STPA24 206 412
STPA25 206 412
STPA26 206 412
JIS G3462 STBA12 206 382
STBA13 206 412
STBA22 206 412
STBA20 206 412
STBA23 206 412

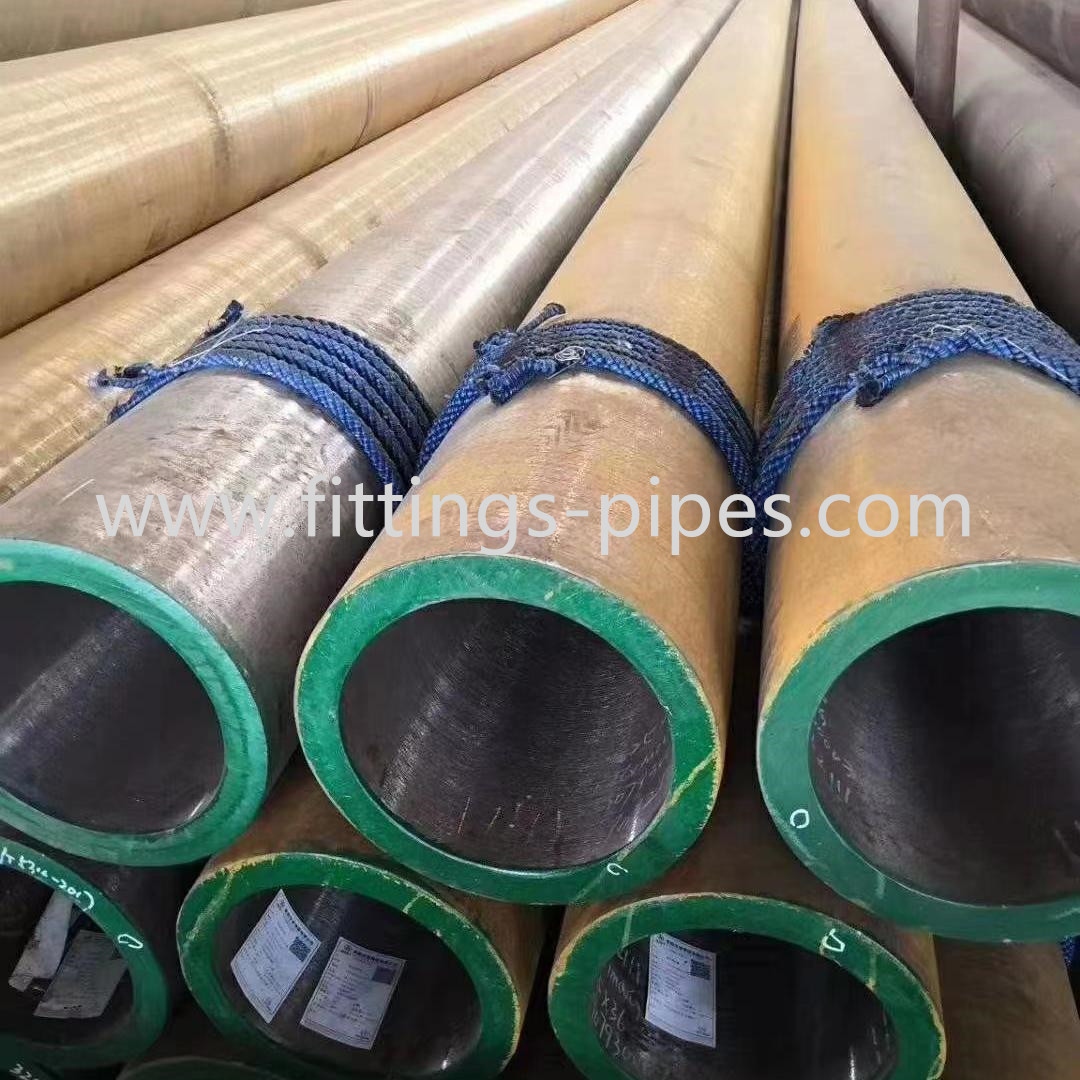

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 2


Astm A335 P22 Seamless Alloy Tube Thickness 1mm 3

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 4

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 5

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 6

Astm A335 P22 Seamless Alloy Tube Thickness 1mm 7
