Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM

Product Details:
Place of Origin: China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 36 "
Payment & Shipping Terms:
Minimum Order Quantity: 0.5Ton
Price: 0.5 Ton US $3870/ Ton;>3 Tons US $2310/ Ton
Packaging Details: Standard export seaworthy package,or as required
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Standard: ASTM A335,ASTM A213,JIS G3458,JIS A3462,DIN17175,GB5310,GB9948 Material: A213: T2, T5, T9, T11, T12, T22, T91, T92 A335: P1, P2, P5, P9, P11, P12, P21, P22, P91, P9 DIN17175: 15Mo3, 13CrMo44, 10CrMo910, 12CrMo195 BS3059: 360, 440, 620-460 JIS G3458: STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26 JIS G3462: STBA12,
Download: Hot Rolled Cold Rolled Erw Outside Diameter: 6 Mm~1200mm
Length: 12m,11.8m,6m,5.8m Or As Required Payment Terms :: L/C, D/A, D/P, T/T, Western Union, MoneyGram
End Protector:: Plastic Pipe Cap Packaging Details:: Standard Sea-worthy Packing Wooden Cases Or Plastic By Bundles As Customer's Required
High Light:

P22 Seamless Carbon Steel Pipe

,

T22 Seamless Carbon Steel Pipe

,

A106b Cold Rolled Steel Pipe

Product Description

Astm A106b Carbon Seamless Steel Pipe P91 T91 Alloy Steel Pipe T22 P22 Alloy Seamless Steel Pipe

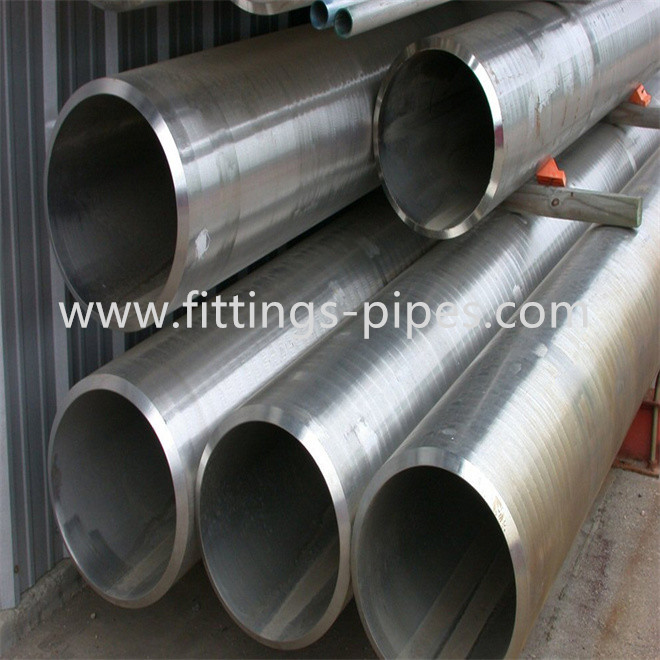

Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 0

Introductio

China Hebei Hong Cheng pipe fitting company is a professional enterprise that integrates pipe production, selling and exports.The company was founded in 1992. It covers an area of 0.1 million square meters.

There are 520 employees,3 of them are senior engineers,12 of them engineers and 150 of them professional technical workers.The annual production capacity is more than 20,000 tons, and the pipe turnover is more than 50,000 tons.

The company has advance production equipment, complete detection equipment and strong technology power. The leading products are steel pipe fitting accessories(elbows, bends, tees, cross tees, reducers, capping heads, flanges, hangers, socket components) series products.

The company is equipped with more than 20000 tons of all kinds of special steel tubes. The materials includes SA106B,20G, Q345,12Cr1MoVG,15CrMoG,1Cr5Mo,1Cr9Mo,10CrMo910,A335P5/P9/P11/P12/P22/P91/P92 and WB36. Steel pipe producing areas are mainly Tianjin big seamless, Shanghai Baogang, Chengdu Steel Vanadium, Yangzhou Chengde, Hualing Hengsteel, Baotou steel and Yangzhou Longchuan. And it has become a "authorized dealer", Electric power, metallurgy, city gas, heat pipe network, shipbuilding and other pipeline engineering.The company is keeping to its ideal of holding up to the quality brands for overtaking markets and to win customers by honesty and trust. Our products are selling across the globe in areas like Southeast Asia, the Middle East, North America and South America.

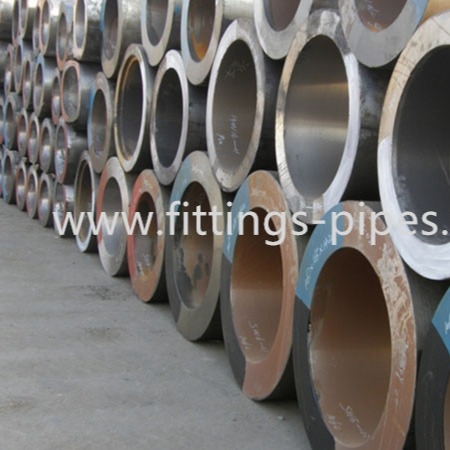

Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 1

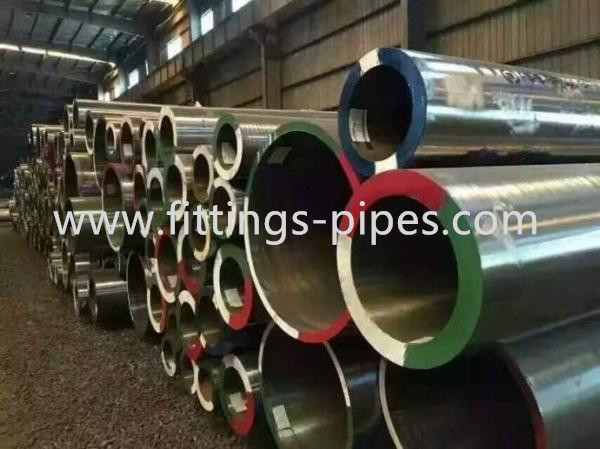

Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 2

Standard:

GB5310----seamless steel pipe for high pressure boiler

GB6479----high pressure seamless steel pipe fertilizer facility

GB9948----seamless steel pipe for petroleum cracking

ASTM A213----Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A335----Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

JIS G3458----Alloy Steel Pipes (STPA 12/ 20/ 22/ 23/ 24/ 25/ 26)

JIS G3462----Alloy Steel for Boiler and Heat Exchanger Tubes (STBA12/ 13/ 20/ 22)

JIS G3467----Steel Tubes for Fired Heater (STF 410/STFA 12/ 22/ 23/ 24/ 25/ 26)

DIN17175-79III----Electrical Resistance Or Induction Welded Steel Tubes for Elevated Temperature

Main product:

Cr5Mo (STFA25 STPA25 STBA25 T5 P5)

15CrMo (STFA22 STPA22 STBA22 T12 P12)

1.25Cr0.5Mo (STFA23 STPA23 STBA23 T11 P11)

Cr9Mo (STFA26 STPA26 STBA26 T9 P9)

12Cr1MOV

12Cr2Mo (10CrMo910 T22 P22)

10Cr9Mo1VNb T91 (P91)

12Cr2MoWVTiB (R102)&

v id="StyleTableProd">

No. Mechanical properties in normal temperature
standard number Steel No. σ s σ b δ s α k
  (mpa) (mpa) (%) (J/cm2)
GB5310 12CrMo 206 412~559 21 69u
15CrMo 235 441~638 21 59u
12Cr1MoV 255 471~638 21 59u
12Cr2Mo 280 450~600 20
ASTM A335 P1 207 379 22
P11 207 413 22
P12 207 413 22
P2 207 379 22
P22 207 413 22
P5 207 413 22
P9 207 413 22
DIN17175 19Mn5 300~310 510~610 19
13CrMo44 280~290 440~590 22
14MoV63 310~319 460~610 20
10CrMo910 269~280 450~600
JIS G3458 STPA12 206 382
STPA20 206 412
STPA22 206 412
STPA23 206 412
STPA24 206 412
STPA25 206 412
STPA26 206 412
JIS G3462 STBA12 206 382
STBA13 206 412
STBA22 206 412
STBA20 206 412
STBA23 206 412

chemical constitution:

No. chemical constitution (%)
Standard No. Steel No. C Mn Si Cr Mo V S P

GB5310 12CrMo 0.08~0.15 0.40~0.70 0.17~0.37 0.40~0.70 0.40~0.55   ≤ 0.035 ≤ 0.035
15CrMo 0.12~0.18 0.40~0.70 0.17~0.37 0.80~1.10 0.40~0.55   ≤ 0.035 ≤ 0.035
12Cr1MoV 0.08~0.15 0.40~0.70 0.17~0.37 0.90~1.20 0.25~0.35 0.15~0.30 ≤ 0.035 ≤ 0.035
12Cr2Mo 0.08~0.15 0.40~0.70 ≤ 0.50 2.00~2.50 0.90~1.20   ≤ 0.035 ≤ 0.035
ASTM A335 P1 0.10~0.20 0.30~0.80 0.10~0.50   0.44~0.65   ≤ 0.045 ≤ 0.045
P11 ≤ 0.15 0.30~0.60 0.50~1.00 1.00~1.50 0.44~0.65   ≤ 0.030 ≤ 0.030
P12 ≤ 0.15 0.30~0.61 ≤ 0.50 0.80~1.25 0.44~0.65   ≤ 0.045 ≤ 0.045
P2 0.10~0.20 0.30~0.61 0.10~0.30 0.50~0.81 0.44~0.65   ≤ 0.045 ≤ 0.045
P22 ≤ 0.15 0.30~0.60 ≤ 0.50 1.90~2.60 0.87~1.13   ≤ 0.030 ≤ 0.030
P5 ≤ 0.15 0.30~0.60 ≤ 0.50 4.00~6.00 0.45~0.65   ≤ 0.030 ≤ 0.030
P9 ≤ 0.15 0.30~0.60 0.25~1.00 8.00~10.00 0.90~1.10   ≤ 0.030 ≤ 0.030
DIN17175 19Mn5 0.17~0.22 1.00~1.30 0.30~0.60 ≤ 0.30     ≤ 0.04 ≤ 0.04
13CrMo44 0.10~0.18 0.40~0.70 0.10~0.35 0.70~1.10 0.45~0.65   ≤ 0.035 ≤ 0.035
14MoV63 0.10~0.18 0.40~0.70 0.10~0.35 0.30~0.60 0.50~0.70 0.22~0.32 ≤ 0.035 ≤ 0.035
10CrMo910 0.08~0.15 0.40~0.70 ≤ 0.50 2.00~2.50 0.90~1.20   ≤ 0.035 ≤ 0.035
JIS G3458 STPA12 0.10~0.20 0.30~0.80 0.10~0.50   0.45~0.65   ≤ 0.035 ≤ 0.035
STPA20 0.10~0.20 0.30~0.60 0.10~0.50 0.50~0.80 0.40~0.65   ≤ 0.035 ≤ 0.035
STPA22 ≤ 0.15 0.30~0.60 ≤ 0.50 0.80~1.25 0.45~0.65   ≤ 0.035 ≤ 0.035
STPA23 ≤ 0.15 0.30~0.60 ≤ 0.50 0.80~1.25 0.45~0.65   ≤ 0.030 ≤ 0.030
STPA24 ≤ 0.15 0.30~0.60 ≤ 0.50 1.90~2.60 0.87~1.13   ≤ 0.030 ≤ 0.030
STPA25 ≤ 0.15 0.30~0.60 ≤ 0.50 4.00~6.00 0.45~0.65   ≤ 0.030 ≤ 0.030
STPA26 ≤ 0.15 0.30~0.60 0.25~1.00 8.00~10.00 0.90~1.10   ≤ 0.030 ≤ 0.030
JIS G3462 STBA12 0.10~0.20 0.30~0.80 0.10~0.50   0.45~0.65   ≤ 0.035 ≤ 0.035
STBA13 0.15~0.25 0.30~0.80 0.10~0.50   0.45~0.65   ≤ 0.035 ≤ 0.035
STBA22 ≤ 0.15 0.30~0.60 ≤ 0.50 0.80~1.25 0.45~0.65   ≤ 0.035 ≤ 0.035
STBA20 0.10~0.20 0.30~0.60 0.10~0.50 0.50~0.80 0.40~0.65   ≤ 0.035 ≤ 0.035
STBA23 ≤ 0.15 0.30~0.60 0.50~1.00 1.00~1.50 0.45~0.65   ≤ 0.035 ≤ 0.030

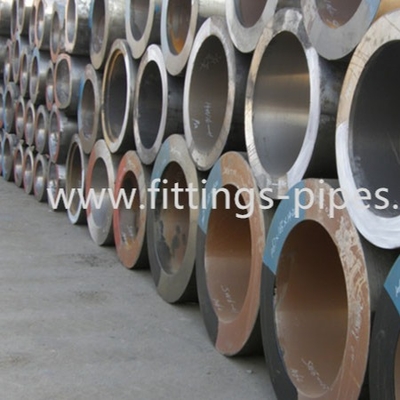

Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 3



Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 4

Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 5



Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 6

Astm A106b Seamless Carbon Steel Pipe T22 P22 Cold Rolled OEM 7
