Hebei Hongcheng Pipe Fittings Co., Ltd.

Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 8" TO 24"
Payment & Shipping Terms:
Minimum Order Quantity: 1Ton
Price: Negotiation
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000Tons per year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin :: CHINA Supply Ability :: 10000 PC Per Month
Material:: Stainless Steel Variety: Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8
Connection:: Soldering Certification :: ISO, API, CE
Port:: Tianjin Authentication: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API
Standard:: Arsenic Petroleum Corporation B16.9 Usage:: Oil And Gas Water Industry
High Light:

astm a234 stainless steel elbow connector

,

sch80 stainless steel elbow connector

,

ss 90 steel elbow

Product Description

ASTM A234 Sch40 Sch80 90 Degree Stainless Steel Elbow and Fittings



We are one of the Professional manufacturers Exporter Pipeline products in China .We can supply the best quality pipes, tubes, fittings flanges and related accessories.

According to the different varieties and requirements of pipe fittings, forging pipe fittings are mainly carried out by die forging, free forging and cutting forming processes. The general die forging method has large flash and consumes materials. In order to reduce material consumption, some pipe fittings manufacturers have begun to use flash-free forming processes, which have achieved good results. This section mainly introduces the process of die forging, free forging and machining to manufacture pipe fittings.







Main Production Name

45 / 90 / 180 Long / Short Radius Elbows, Equal / Reducing Crosses,

Concentric /Eccentric Reducers, Caps, Stub Ends,Pipe fittings

Size Range From ½” up to 106”
Schedule SCH STD, XS, XXS, SCH 10 ~ SCH 160
Main Material Code:
Carbon Steel ASTM A234 WPB, WPC; ASTM A420 WPL9, WPL3, WPL6, WPHY-42
  WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70,
Alloy Steel ASTM A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91
Nickel alloy steel Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800,
  Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500
Stainless Steel ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254

Duplex super

Duplex stainless steel

ASTM A 815 UNS S31803, UNS S32750, UNS S32760
Standard ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
Certification: ISO9001:2000 , API , BV , , LOIYD

Applications

range:

Petroleum, chemical, power, gas, metallurgy, shipbuilding.construction,water and

nuclear power etc.

Quality High lever

The third party

inspection:

BV,,LOIYD,TUV,and other party alloyed by clients.
Delivery Time: At the earliest ,within the period required by customer.
Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings

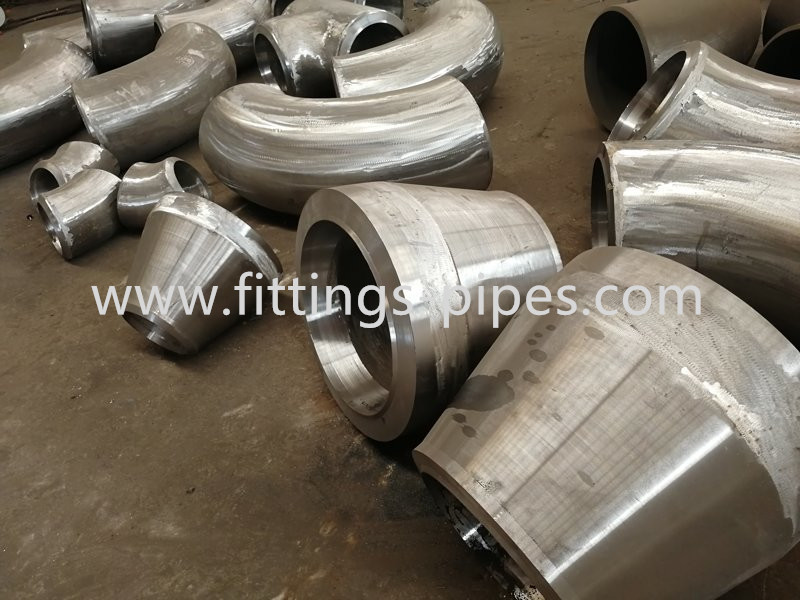

Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree 0





Type Reducing
Size Seamless Tee:1/2"~24" DN15~DN600
Welded Tee: 1/2"~100" DN15~DN2500
Wall thickness sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Standards ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material Carbon steel: ASTM A234 WPB,WPC,ASTM A105
Alloy steel: ASTM A234 WP1-WP12-WP11-WP22-WP5-WP91-WP911
Stainless steel: ASTM A403 WP 304-304L ASTM A403 WP 316-316L
ASTM/ASME A403 WP 321-321
Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 WPHY 42- 46- 52- 60- 65- 70
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing wooden case, pallet or as customers' requirement
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order 1 piece
Delivery time 7days after receipt of advance payment
Certification API, ISO9001:2000
Delivery Term FOB(30% down payment in advance, the balance before shipment)
CIF or C&F(30% in advance , the balance against with the copy of B/L)

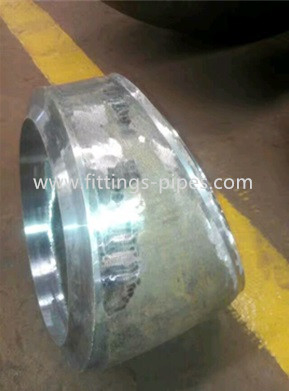

Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree 1





Chemical Composition:

Chemical Composition of ASTM A234
Element WP5 WP9 WP11 WP91
C Max 0.15 Max .15 0.05 - 0.15 0.08 - 0.12
Mn 0.30 - 0.60 0.30 - 0.60 0.30 - 0.60 0.30 - 0.60
P Max 0.040 Max 0.030 Max 0.030 Max 0.020
S Max 0.030 Max 0.030 Max 0.030 Max 0.010
Si Max 0.50 0.25 - 1.00 0.50 - 1.00 0.20 - 0.50
Ni - - - Max 0.40
Cr 4.0 - 6.0 8.0 - 10.0 1.00 - 1.50 8.0 - 9.5
Mo 0.44 - 0.65 0.90 - 1.10 0.44 - 0.65 0.85 - 1.05
Cu - - - -
Cb - - - 0.060 - 0.10
V - - - 0.18 - 0.25

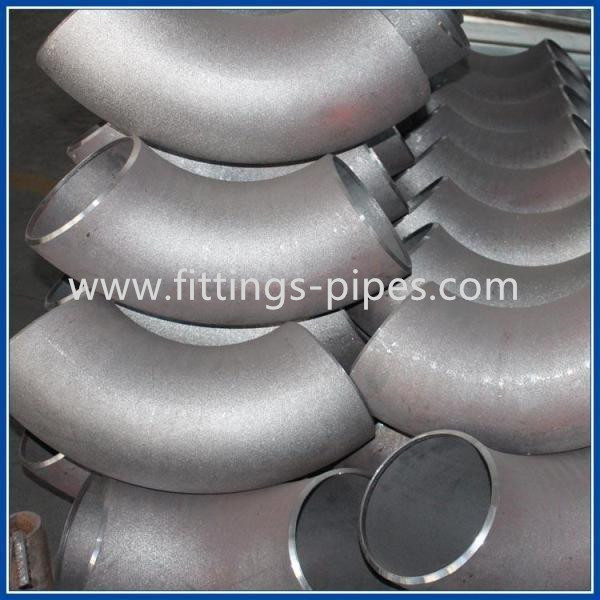

Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree 2





DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~

Nominal Pipe Size All Fittings All Fittings All Fittings Elbows/ Tees 180° Return Bends 180° Return Bends 180 Deg Return Bends Reducers Caps
NPS O.D. at Bevel (1), (2)

I.D. at End

(1), (3), (4)

Wall Thickness (3) Centre-to-End Dimension A,B,C,M Centre-to-Centre O Back-to-Face K Alignment of Ends U Overall Length H Overall Length E
½ to 2½

0.06

-0.03

0.03 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
3 to 3 ½ 0.06 0.06 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
4 0.06 0.06 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
5 to 8

0.09

-0.06

0.06 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.25
10 to 18

0.16

-0.12

0.12 Not less than 87.5% of nominal thickness 0.09 0.38 0.25 0.06 0.09 0.25
20 to 24

0.25

-0.19

0.19 Not less than 87.5% of nominal thickness 0.09 0.38 0.25 0.06 0.09 0.25
26 to 30

0.25

-0.19

0.19 Not less than 87.5% of nominal thickness 0.12 0.19 0.38
32 to 48

0.25

-0.19

0.19 Not less than 87.5% of nominal thickness 0.19 0.19

0.38









ASTM A234 Scope:

1.1 This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, and MSS-SP-95. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures. Fittings differing from these ASME and MSS Standards shall be furnished in accordance with Supplementary Requirement S58 of Specification A 960/A 960M.

1.2 Optional supplementary requirements are provided for fittings where a greater degree of examination is desired. When desired, one or more of these supplementary requirements may be specified in the order.

1.3 This specification does not cover cast welding fittings or fittings machined from castings. Cast steel welding fittings are governed by Specifications A 216/A 216M and A 217/A 217M.

1.4 This specification is expressed in both inch-pound units and in SI units. However, unless the order specifies the applicable “M” specification designation (SI units), the material shall be furnished to inch-pound units.

1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining

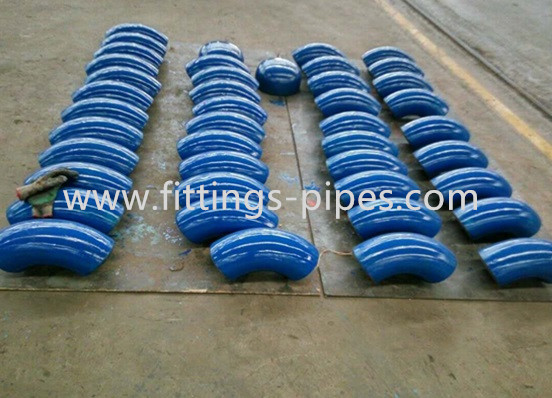

Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree 3



Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree 4





Astm A234 Stainless Steel Elbow Connector Sch40 Sch80 90 Degree 5

FAQ:



  1. Are you a factory or trading company?

  We are a factory.we also have cooperated factory doing other steel business.

  2. How can I get a quotation from you ?

  You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.

  And you can also find our contact information on contact page.

  3.Can I get samples before order ?

  Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

  4. what is your delivery time ?

  The time of delivery is usually around 20 days(1*20FT as usual).

  We can send out in 2 days, if it has stock.

  5.What is your payment terms?

  Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.

  6.How does your factory do regarding quality control?

  Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.

  And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,

  we will make the last test to pick up the unqualified products
