Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | hongcheng |
Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
Model Number: | 1/2" TO 44 " |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1PC |
Price: | Negotiation |
Packaging Details: | Plywood Cases or Pallets |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 100000Tons per year |
Detail Information |
|||
Place Of Origin :: | CHINA | Payment Terms :: | T/T Or Western Union Or LC |
---|---|---|---|

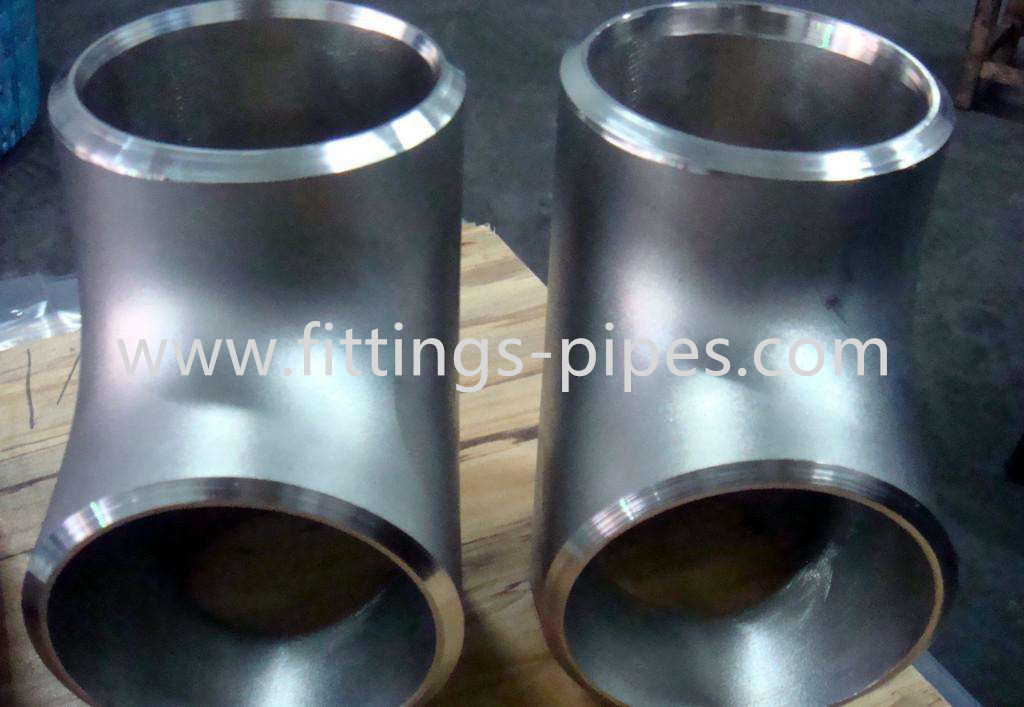

Product Name :: | Equal Diameter Reducing Tee | Certification :: | ISO, API, CE |
Supply Ability :: | 10000 PC Per Month | Packaging Details :: | Regular Shipping Packaging Or Depends On Customer's Requirement |
Variety: | Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8 | Connection:: | Soldering |
High Light: | 304l steel reducing tee,api steel reducing tee,reducing ss 304 tee |
Product Description

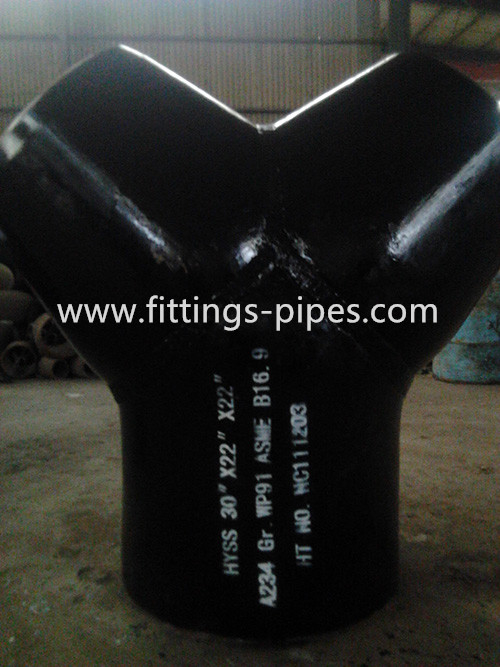

ASTM A234 Alloy Steel Fittings ASTM A234 Alloy pipe fittings
Product Name | ASTM A234 alloy steel pipe fitting (WP51, WP5, WP9, WP11, WP91) | |
Size | 1/2"~44" (Seamless) | |
Thickness | STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH80,...etc | |
Standard | ANSI B16.9, ASME, JIS, DIN, GOST, GB | |
Material | ASTM | Carbon Steel: ASTM A234 WPB, A234 WPC, A420 WPL6 |
Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 1Cr18Ni9Ti, ....etc | ||
Alloy Steel: ASTM A234 WP12, WP11,WP22, WP5,,WP9, WP91, ASTM A420 WPL6, WPL3 |
||
DIN | Carbon Steel:St37.0 , St35.8, St45.8 | |
Stainless Steel:1.4301, 1.4306, 1.4401, 1.4571 | ||
Alloy Steel:1.7335, 1.7380, 1.0488(1.0566) | ||
JIS | Carbon Steel: PG370, PT410 | |
Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, SUS321,..etc | ||
Alloy Steel: PA22, PA23, P24, PA25, PL380 | ||
GB | #10, #20, 20G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo | |
Ends | Bevel end, butt weld | |
Applications |
Petrochemical industry Pharmaceutic industry Power plant Water treament Construction,...etc |
|
Packing |
Seaworthy Packing Customers' request plastic bags + wooden or olywood case or pallet carton |
|
Advantage |
- Provide Samples - Ready Stock - Fast Delivery - Available all sizes - High Quality - Competitive Price |
Chemical Composition:
Chemical Composition of ASTM A234 | ||||
Element | WP5 | WP9 | WP11 | WP91 |
C | Max 0.15 | Max .15 | 0.05 - 0.15 | 0.08 - 0.12 |
Mn | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 |
P | Max 0.040 | Max 0.030 | Max 0.030 | Max 0.020 |
S | Max 0.030 | Max 0.030 | Max 0.030 | Max 0.010 |
Si | Max 0.50 | 0.25 - 1.00 | 0.50 - 1.00 | 0.20 - 0.50 |
Ni | - | - | - | Max 0.40 |
Cr | 4.0 - 6.0 | 8.0 - 10.0 | 1.00 - 1.50 | 8.0 - 9.5 |
Mo | 0.44 - 0.65 | 0.90 - 1.10 | 0.44 - 0.65 | 0.85 - 1.05 |
Cu | - | - | - | - |
Cb | - | - | - | 0.060 - 0.10 |
V | - | - | - | 0.18 - 0.25 |
Mechanical Property:
ASTM A234/A234M |
Tensile strength, min
|
Yield Strength, min | Elongation,%, min | |||
Grade | Ksi | Mpa | Ksi | Mpa | Longitudinal | Transverse |
WP5 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
WP9 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
WP11 | 60 - 85 | 415 - 585 | 40 | 275 | 22 | 14 |
WP91 | 85 - 110 | 585 - 760 | 60 | 415 | 20 | - |
DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~
Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
NPS | O.D. at Bevel (1), (2) |
I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
½ to 2½ |
0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
5 to 8 |
0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
10 to 18 |
0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
20 to 24 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
26 to 30 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
32 to 48 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
FAQ:
1. Are you a factory or trading company?
We are a factory.we also have cooperated factory doing other steel business.
2. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
3.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4. what is your delivery time ?
The time of delivery is usually around 20 days(1*20FT as usual).
We can send out in 2 days, if it has stock.
5.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
6.How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
we will make the last test to pick up the unqualified products
