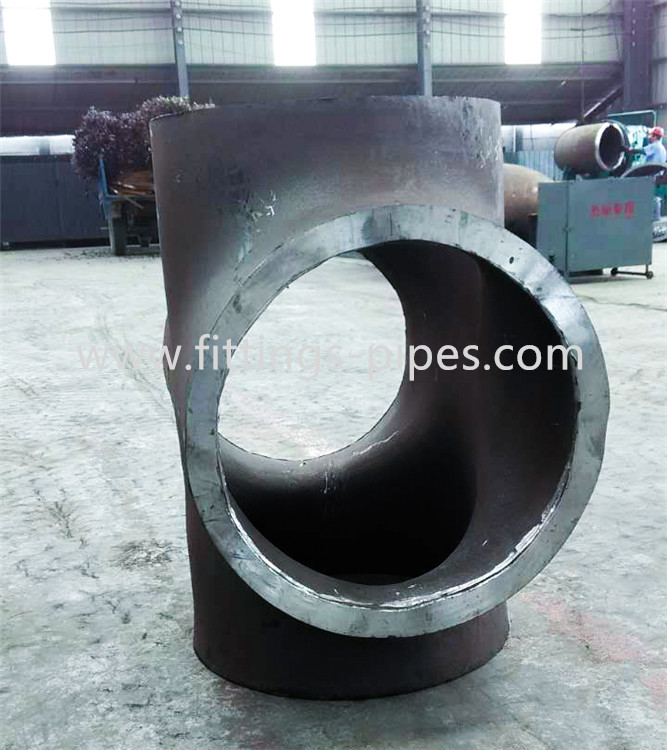

Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 44 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000Tons per year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin :: CHINA Payment Terms :: T/T Or Western Union Or LC
Product Name :: Equal Tee Certification :: ISO, API, CE
Supply Ability :: 10000 PC Per Month Packaging Details :: Regular Shipping Packaging Or Depends On Customer's Requirement
Surface Treatment:: Sandblasting Standard:: Arsenic Petroleum Corporation B16.9
Highlight:

asme b16.9 tee carbon steel

,

dn50 tee carbon steel

,

carbon steel tee straight through

Product Description

Carbon Steel ASME B16.9 Fittings Seamless Straight Through/Reduce Tee SCH40 DN50 ASTM A234 WPB Butt Weld







Unit : inch
Nominal
Outside Dia.
(OD)
Wall Thickness (T)

Tees Center To

Ends C.M

Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.13
1 1.315 0.065 0.109 0.133 0.179 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25
2 2.375 0.065 0.109 0.154 0.218 2.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.00
3 3.500 0.083 0.120 0.216 0.300 3.38
4 4.500 0.083 0.120 0.237 0.337 4.13
5 5.563 0.109 0.134 0.258 0.375 4.88
6 6.625 0.109 0.134 0.280 0.432 5.63
8 8.625 0.109 0.148 0.322 0.500 7.00
10 10.750 0.134 0.165 0.375 0.500 8.50
12 12.750 0.156 0.180 0.375 0.500 10.00
14 14.000 0.156 0.250 0.375 0.500 11.00
16 16.000 0.165 0.250 0.375 0.500 12.00
18 18.000 0.165 0.250 0.375 0.500 13.50
20 20.000 0.188 0.250 0.375 0.500 15.00
24 24.000 0.218 0.250 0.375 0.500 17.00

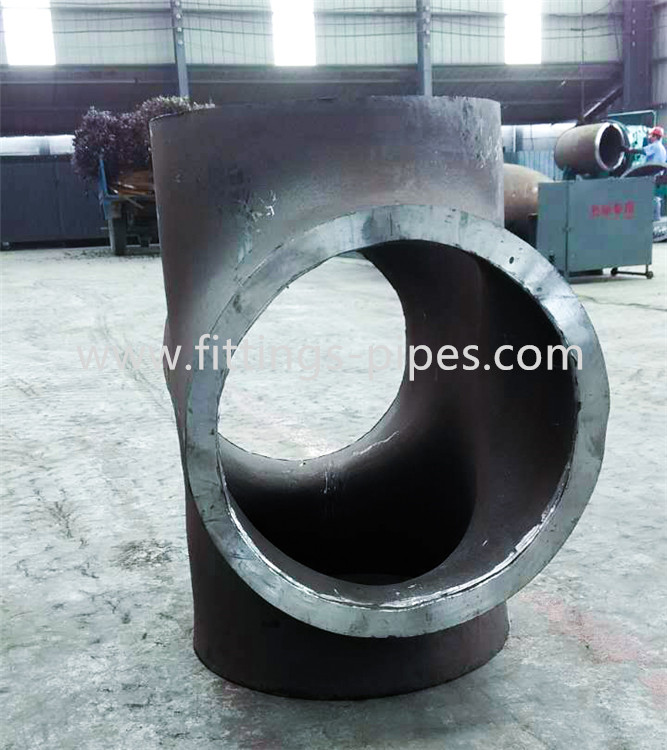

Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50 0

Technical Drawing Size Specification

Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50 1

Hongcheng is a professional Alloy Steel pipe fittings Alloy Stee pipe manufacturer in China,
We can produce high quality steel pipe fittings,
Tee (Equal Reducing)
Material:
Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel: ASTM A234 / WP5/ WP9/ WP11/ WP22/ WP91
Marking:As per request
Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
Document: MTC EN10204-3.1 can be provided prior to shipment
Surface treatment: Surface galvanized, antirust coating, Epoxy FBE Coating, Electro Polishing,
For further information about our company and products, please visit our website or contact us directly. You will get our 24X7 hour reply by Email, fax or Pohone.





Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50 2





Application

Alloy steel pipe applies to petroleum,chemical industry, electric power, boiler, high temperature resistant, low temperature resistant,corrosion resistant seamless steel pipe used.Alloy steel pipealso can made according to the customer.



Container size

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM



40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM



40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM



Contact If you have any question,please feel free to contact me.

Applications of pipe tees:
Pipe Tees are widely used in various commercial and industrial applications. Industrial applications include: Chemical processing, Petroleum, Pulp/paper, Refining, Textile, Waste treatment, Marine, Utilities/power generation, Industrial equipment, Automotive, Gas compression and distribution industries

Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50 3

Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50 4

Asme B16.9 Fittings Tee Carbon Steel Seamless Straight Through / Reduce Dn50 5
