Detail Information
Product Description

Detail Information
Brand Name::	HongCheng	PaymeT/TCertification:nt Terms::	ASME API CE
Payment Terms::	T/T	MATERIAL::	Alloy Steel，carbon Steel
SHAPE::	Prefabricated Units/pipeline	NAME::	610*41.28mm A234 Wpb Alloy Steel Customized Pressure Vessel Power Plant Pipeline
APPLICATION::	Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water	Packaging Details::	PACKED BY PLASTIC SLEEVE+IRON CASE,seaworthy Packing
Highlight:	prefabricated 90 degree lr elbow , astm a234 90 degree lr elbow , butt weld lr elbow 90 deg

Product Description

**A234 Wpb Alloy Steel, 90 Lr 610*41.28mm Prefabricated Elbow Units Butt Weld**

Hebei Hongcheng Pipe Industry Co., Ltd. is a professional enterprise integrating the production, sales and export of pipe fittings and steel pipes. The company was established in 1992 and now has 418 employees, including 30 engineers, 68 management personnel, 28 foreign trade personnel, 70 special operation personnel, and 105 various technical personnel.

The company is located in Wuliyao Industrial Park, Yanshan County, with Beijing and Tianjin in the north and Huanghua Port in the east, with very convenient transportation. The company covers an area of 130,000 square meters, of which the workshop area is 60,000 square meters. Our company has more than 280 sets of modern production and testing equipment, including 20 sets of 500-10,000-ton hydraulic presses, 40 sets of various precision lathes, 6 sets of gas heating furnaces, 10 sets of heat treatment furnaces, 7 sets of pushing equipment, and more than 20 sets of testing and inspection equipment. tower.

The company has successively passed ISO9001 international quality management system certification, ISO14001 environmental management system certification, OHSA18001 occupational health and safety management system certification, and pressure pipeline component special equipment manufacturing license certification. And obtained China Datang Group Network Member Certificate, China Chemical Equipment Designated Manufacturing Enterprise Certificate, China Electric Power Parts Network Member Certificate, our company has now become Sinopec, PetroChina, CNOOC, China Coal Group, China Energy Construction, China Power Construction, Huaneng Group , Huadian Group, Shenhua Group qualified suppliers.

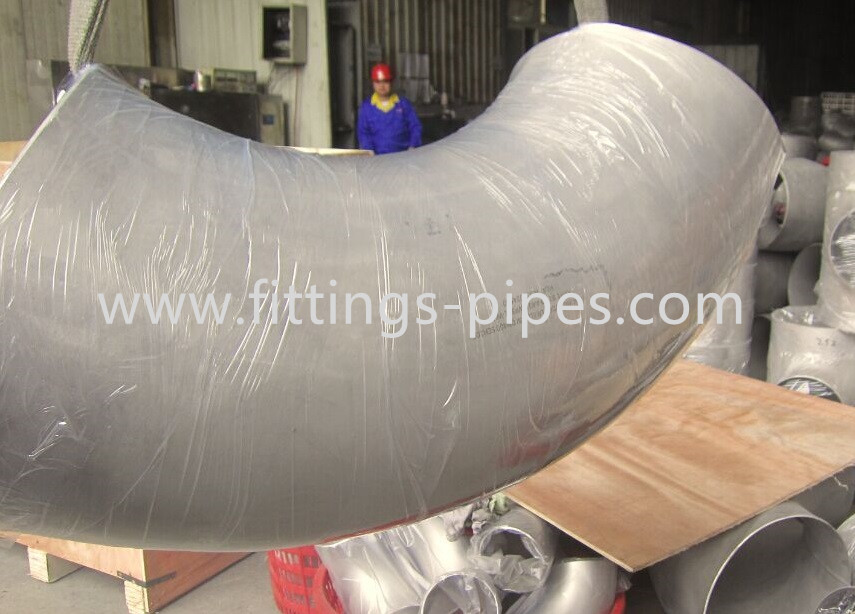

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 0

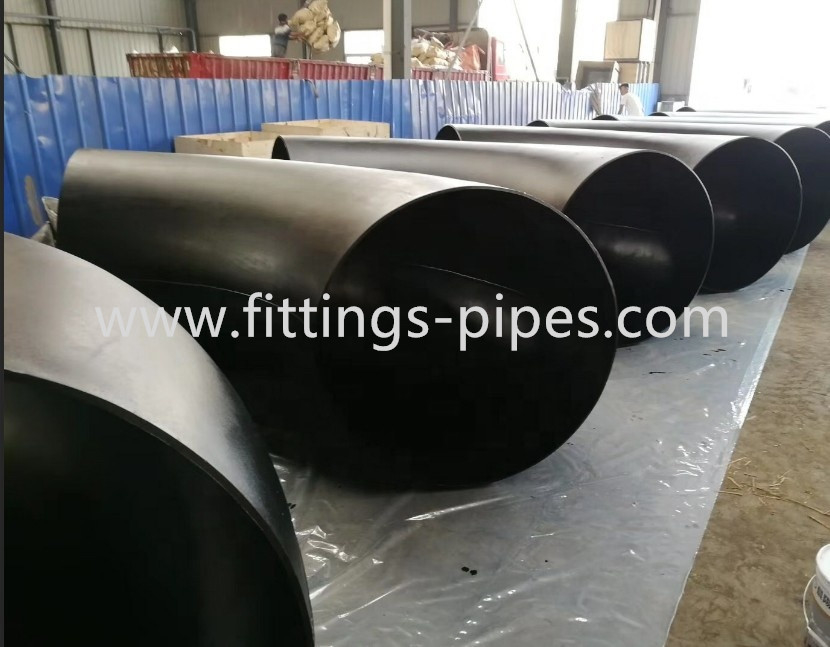

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 1

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 2

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 3

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00

Chemical composition(%):

Grade	C	Mn	P≤	S≤	Si	Cr	Mo
P11	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65
P22	0.05-0.16	0.30-0.60	0.025	0.025	≤0.50	1.90-2.60	0.87-1.13
P5	≤0.15	0.30-0.60	0.025	0.025	≤0.50	4.00-6.00	0.45-0.65
P9	≤0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.90-1.10
P91	0.08-0.12	0.30-0.60	0.020/0.010	0.020/0.010	0.02-0.50	8.00-9.50	0.85-1.05
P92	0.07-0.13	0.30-0.60	0.020/0.010	0.020/0.010	≤0.50	8.50-9.50	0.30-0.60

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 4

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 5

Prefabricated Astm A234 Wpb 90 Degree Lr Elbow 711 ×32.27mm Butt Weld 6

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HongCheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	Customized Size,2''-24''(DN50-DN600)
Payment & Shipping Terms:
Minimum Order Quantity:	10PC
Price:	Depending on quantity
Packaging Details:	PACKED BY PLASTIC SLEEVE+IRON CASE,seaworthy packing
Delivery Time:	10-25 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000Tons per year
