Detail Information
Product Description

Detail Information
Place Of Origin::	China	Qualification:	API,CE,ISO9001:2008,LRQA,PED ABS， GL， DNV， NK， PED， AD2000， GOST9941-81， CCS， ISO 9001-2008
Model Number ::	ASTM A182 F51 F55 F60 F61 WN LWN SO Flange	Size:	1/2"-24"
Material ::	Nickel Alloy/stainless Steel/duplex Stainless	Payment Terms:	T/T, L/C At Sight
Packaging Details:	Standard Export Seaworthy Package Or As Required Plastic Bag In Bundle,Wooden Box,etc.
High Light:	24Inch Alloy Steel Fittings , CE Alloy Steel Fittings , ISO Alloy Steel Flanges

Product Description

For Rolled Alloy Steel Pipe Flanges, Forged Fittings, For High-Temperature Service Alloy Steel Fittings

1. ASME/ANSI B16.5 provides

.weld neck

.slip-on

.socket weld

.threaded

.lap joint

3blind

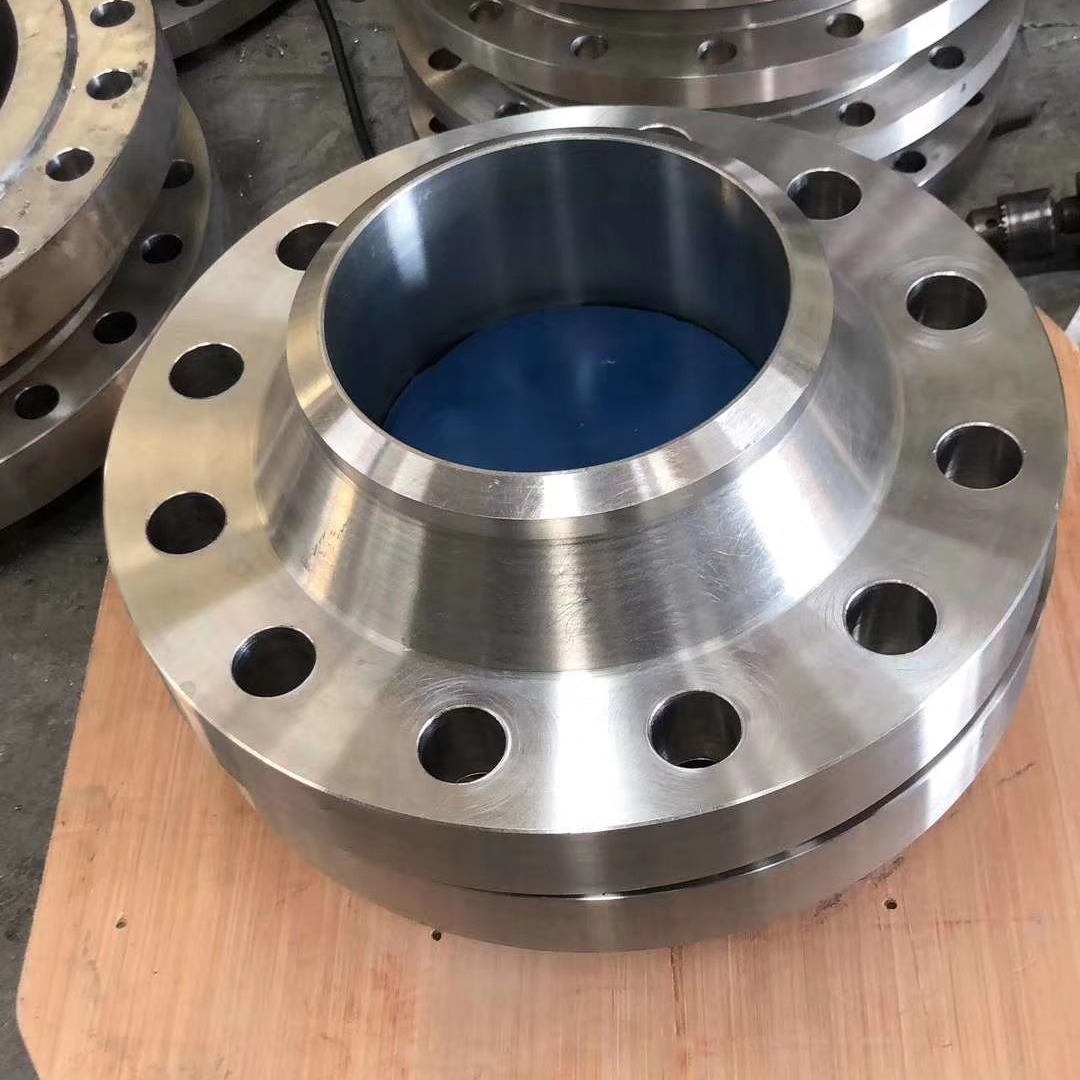

24 Inch Alloy Steel Fittings Flanges API CE ISO Certification 0

2. Flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500.

.Steel Pipe Dimensons - Schedule 40

.Steel Pipe Dimensions - Schedule 80

Nominal Pipe Size NPS (inches)	Class 300
Nominal Pipe Size NPS (inches)	Diameter of Flange (inches)	No. of Bolts	Diameter of Bolts (inches)	Diameter of Bolt Holes (inches)	Bolt Circle (inches)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-3/4	4	1/2	0.62	2-5/8
3/4	4-5/8	4	5/8	0.75	3-1/4
1	4-7/8	4	5/8	0.75	3-1/2
1-1/4	5-1/4	4	5/8	0.75	3-7/8
1-1/2	6-1/8	4	3/4	0.88	4-1/2
2	6-1/2	8	5/8	0.75	5
2-1/2	7-1/2	8	3/4	0.88	5-7/8
3	8-1/4	8	3/4	0.88	6-5/8
3-1/2	9	8	3/4	0.88	7-1/4
4	10	8	3/4	0.88	7-7/8
5	11	8	3/4	0.88	9-1/4
6	12-1/2	12	3/4	0.88	10-5/8
8	15	12	7/8	1	13
10	17-1/2	16	1	1.12	15-1/4
12	20-1/2	16	1-1/8	1.25	17-3/4
14	23	20	1-1/8	1.25	20-1/4
16	25-1/2	20	1-1/4	1.38	22-1/2
18	28	24	1-1/4	1.38	24-3/4
20	30-1/2	24	1-1/4	1.38	27
24	36	24	1-1/2	1.62	32

3. Other Types of Incoloy 800HT Flanges

Incoloy 800HT Slip On Flanges	Incoloy 800 Raised Face Slip On Flanges 800 Alloy Slip On Plate Flanges Incoloy 800H Slip On Flanges Incoloy UNS N08800 Slip On Flanges Incoloy WERKSTOFF NR. 1.4876 45 SORF Flanges ASME SB564 Alloy 800 Slip On Flanges
Incoloy 800HT Weld Neck Flanges	Incoloy 800 Raised Face Weld Neck Flanges 800 Alloy Weld Neck Flanges 800HT Incoloy Weld Neck Flange Incoloy UNS N08810 Weld Neck Flanges Incoloy WERKSTOFF NR. 1.4958 Weld Neck Flange ASTM B564 Incoloy 800H WNRF Flange
Incoloy 800HT Blind Flanges	Incoloy 800 Raised Face Blind Flanges 800 Alloy Blind Flanges Incoloy 800HT Blind Flange Incoloy UNS N08811 Blind Flanges Incoloy WERKSTOFF NR. 1.4859 Blind Flange ASTM B564 Incoloy 800H BLRF Flanges
Incoloy 800HT Orifice Flanges	Alloy 800 Orifice Flanges 800 Incoloy Orifice Flanges 800H Incoloy Orifice Flanges Incoloy UNS N08800 Orifice Flanges Incoloy WERKSTOFF NR. 1.4876 Orifice Flanges B564 800H Incoloy Orifice Flanges
Incoloy 800HT Socket weld Flanges	Alloy 800 Socket weld Flanges 800HT Incoloy Socket weld Flanges 800H Alloy Socket weld Flanges Incoloy UNS N08810 Socket weld Flanges Incoloy WERKSTOFF NR. 1.4958 SWRF Flanges ASME B16.5 800 Incoloy Socket weld Flanges
Incoloy 800HT Threaded Flanges	Incoloy 800 Threaded Flanges 800H Alloy Threaded Flanges 800HT Incoloy Threaded Flanges Incoloy UNS N08800 Threaded Flanges Incoloy WERKSTOFF NR. 1.4876 Threaded Flanges ASTM B564 Incoloy 800 Threaded Flanges

4. Incoloy Alloy 800HT Pipe Flanges Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ

Incoloy 800HT Plate Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Equivalent Grades 800HT Incoloy Industrial Pipe Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

5. Incoloy 800HT Flanges Price List

800 Incoloy Flanges
US $1.8-159 / Piece (FOB Price)

Alloy 800H Pipe Flanges
US $1500-1800 / Ton (FOB Price)

Incoloy 800HT Weld Neck Flanges
US $100-2500 / Ton (FOB Price)

ASTM B564 Incoloy Alloy 800 plate flanges
US $1-500 / Ton (FOB Price)

800H Alloy Pipe Flanges
US $999-1499 / Ton (FOB Price)

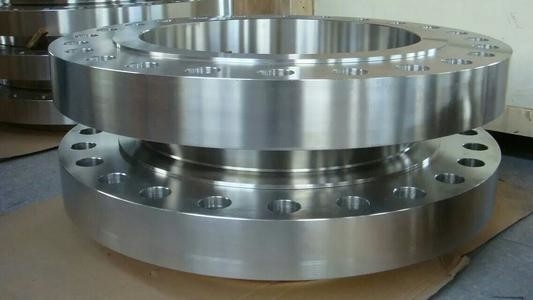

24 Inch Alloy Steel Fittings Flanges API CE ISO Certification 3

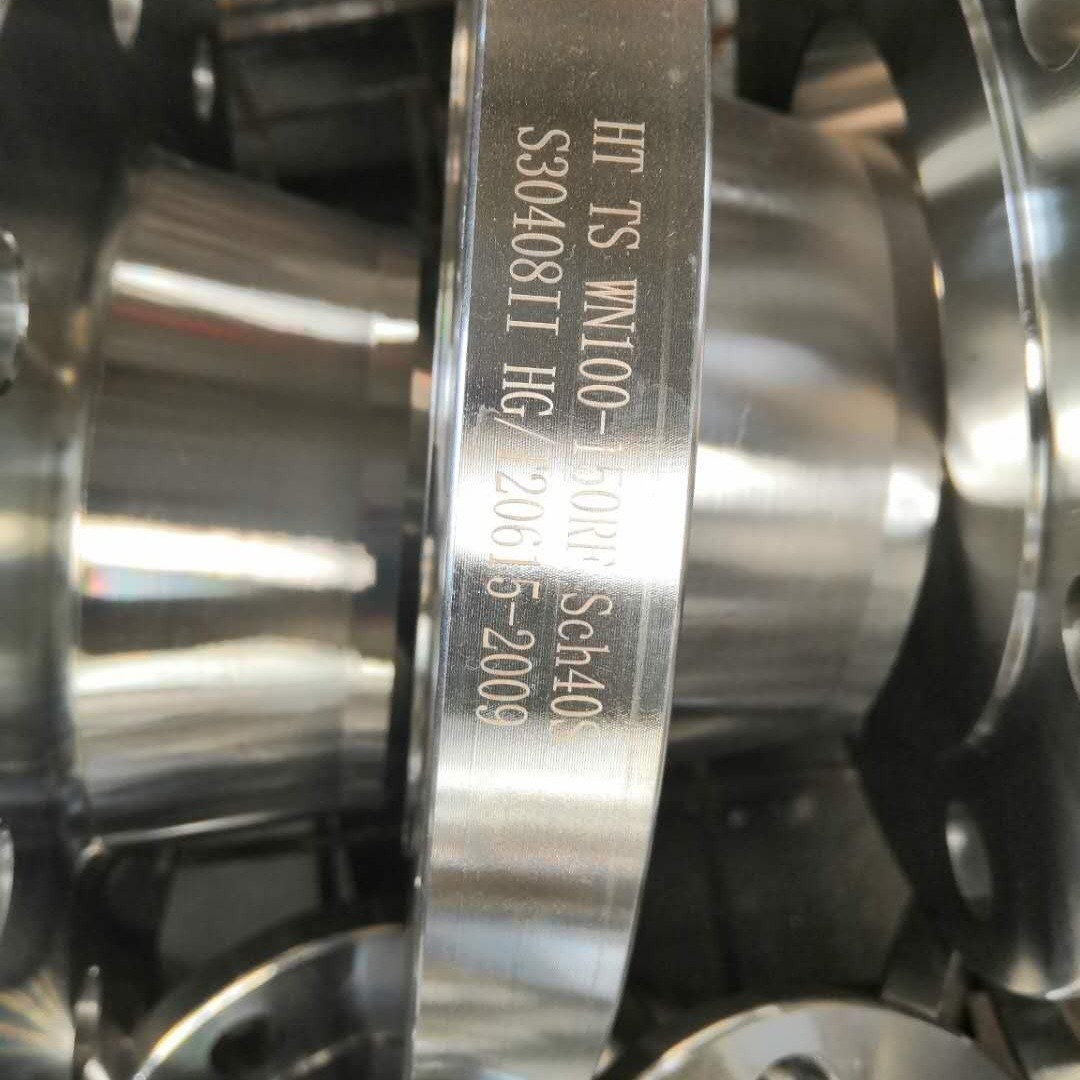

24 Inch Alloy Steel Fittings Flanges API CE ISO Certification 4

FAQ

1.Q:Are you a factory or trading company?

A: We are a factory, has more than 20 years experience in pipe fittings production.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in cangzhou City, hebei Province,China.

3.Q:How does your factory do regarding quality control?

A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.

Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	200,000 tons/year
