Name: 90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness
Brand: hongcheng
SKU: 1/2" TO 72"
Price: 1 USD
Availability: InStock
Rating: 4.7 (145 reviews)

Detail Information
Product Description

Detail Information
Place Of Origin::	China	Qualification:	API,CE,ISO9001:2008,LRQA,PED ABS， GL， DNV， NK， PED， AD2000， GOST9941-81， CCS， ISO 9001-2008
Size:	1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 1/2’’~48’’(Seamless);16’’~72’’(Welded)	Thickness:	STD, DIN, SCH40, SGP, SCH10-XXS(2-160mm)
Surface Treatment:	Surface Treatment :sandblasting,shot Blasting,pickling	Payment Terms:	T/T, L/C At Sight
High Light:	90Degree Alloy Steel Fittings , SCH40 Alloy Steel Fittings , DIN 90 Degree Steel Elbow

Product Description

Alloy Steel Fittings A234 Wp5 Alloy Steel Pipe Fittings 90 Deg Lr Elbow/ Alloy Steel Elbow/Alloy Steel Pipe Bend

A234 WP5 alloy steel pipe fittings 90 deg LR elbow Seamless Carbon Steel Elbow/Alloy Steel Elbow/Pipe Bend

Products	Seamless Butt-Welded Carbon Steel Pipe Fittings
Brand:	Hongcheng
Item	Elbow L/R S/R,Equal Tee,Reducing Tee,Concentric Reducer,Eccentric Reducer,Cap, Bend
Standard	ASME	ANSI B16.9,ANSI B16.28,MSS-SP-75
	DIN	DIN2605,DIN2615, DIN2616, DIN2617, DIN28011
	SGP	JISB2313
	EN	EN10253-1 EN10253-2
Material	ASME	A234 WPB,A234 WP1,A234 WP5,A234,WP9,
		A234 WPB11,A234 WPB12,A234 WPB22,WP91,
		A420,WPHY42,WPHY52,WPHY60,WPHY65,
		WPHY70,WP304,WP304L,WP304H,WP316,
		WP316L,WP321,WP347,WP347H
	DIN	ST37.0,ST35.8,ST45.8,S235JR,P235GH,P265GH,
		10CrMo910,15CrMo,12Cr1MoV
	JIS	JIS G3454,STPG370,TPG410
Surface	Black paint/bright paint/Galvanized
Marking	As customer’s requirements
Package	By strong plywood cases
Delivery	Within 30 days
Certificate	PED, ISO9001:2008

BUTT-WELDING PIPE FITTINGS
MATERIAL	Carbon Steel:
	ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn
	DIN St37, St45.8, St52.4, St.35.8, St.35.8.
	Stainless Steel:
	1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti
	00Cr17Ni14Mo2 304 304L 316 316L
	Alloy Steel:
	16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,
	A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70
STANDARD	ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97
MODEL	1.Tee (Straight and Reducing) 2.180 DEG Return
	3.Elbow (45/90/180 DEG) 4.Cap
	5. Reducer (Concentric and Eccentric)
TYPE	Seam Or Seamless
ELBOW DEGREE	45 degree, 90 degree, 180 degree
SURFACE	Black Paint, Anti Rust Oil, Hot-Dipped Galvanize
WALL THICKNESS	SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60
WALL THICKNESS	SCH80, SCH100, SCH120, SCH140, SCH160, XXS, 2MM
SIZE	1/2"-48"(Dn15-Dn1200)
CONNECTION	Welding
SHAPE	Equal, Reducing
CERTIFICATE	ISO9001 API TUV
APPLICATION	Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc
Customers’ drawings or designs are available.
PACKAGE	1. 1/2" - 2" in Cartons.
	2. Above 2" in Fumigation Wooden Cases.
	3. Big size is workable by Pallets.
DELIVERY DETAILS	Normal delivery time is from 15 to 45 days according to the quantities and specifications of each order

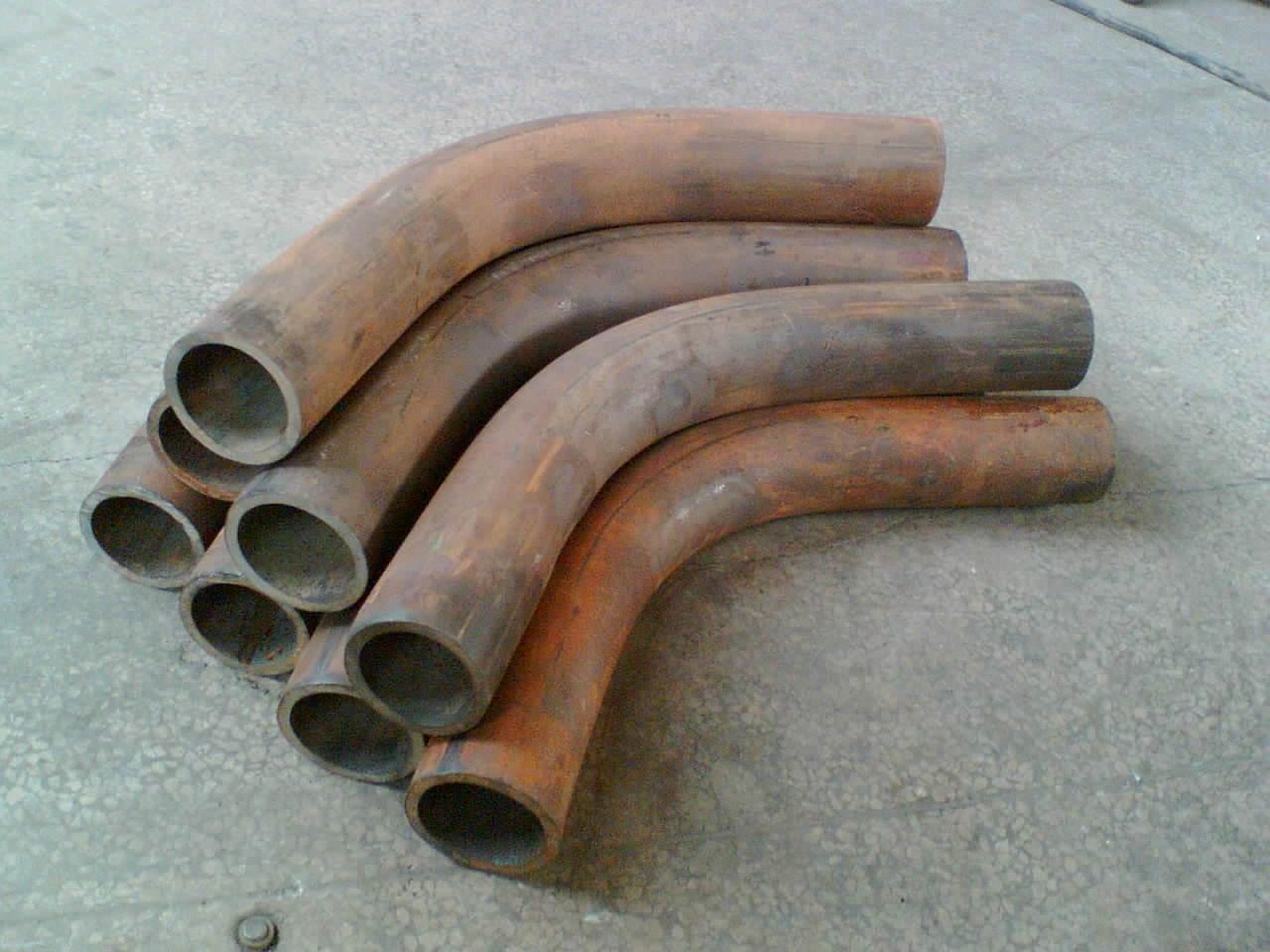

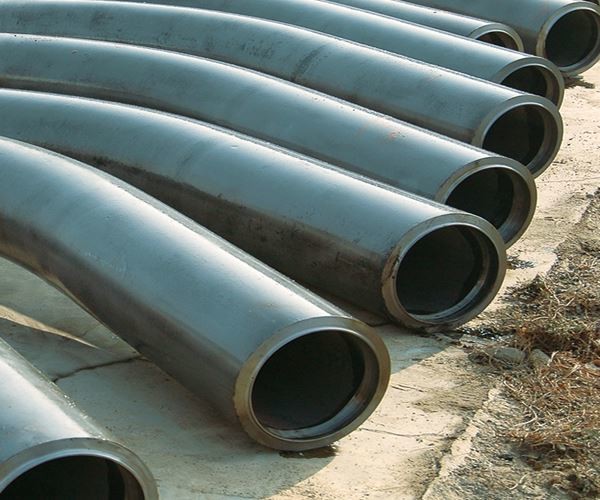

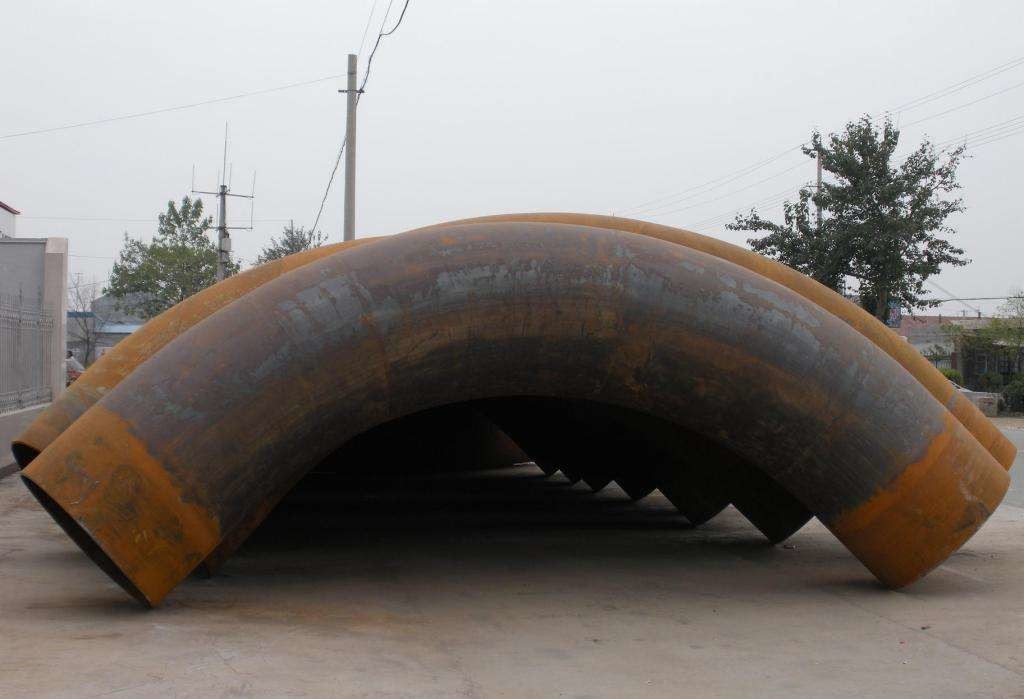

90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness 0

90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness 1

90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness 2

90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness 3

90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness 4

The reason why you Choose us

· ISO System

· TUV and BV Audited company .

· Industry experience over 50 years.

· Management Systems-Internal Software

· Finished Product Inventory-More Than 50000 Tons.

· Raw Material inventory -Over 80000 Mertic Tons.

· Shipment of goods -More than 50 countries worldwide.

· We have the most convenient transport and prompt delivery.

· We offer competitive price with best service .

· We have high technical production line with top quality products.

· We have win high reputation based on best quality products.

Choose Hongcheng ,Choose Top Guarantee

Tag:

Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 72"
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	200,000 tons/year

90 Degree Alloy Steel Fittings Elbow With DIN SCH40 Thickness
